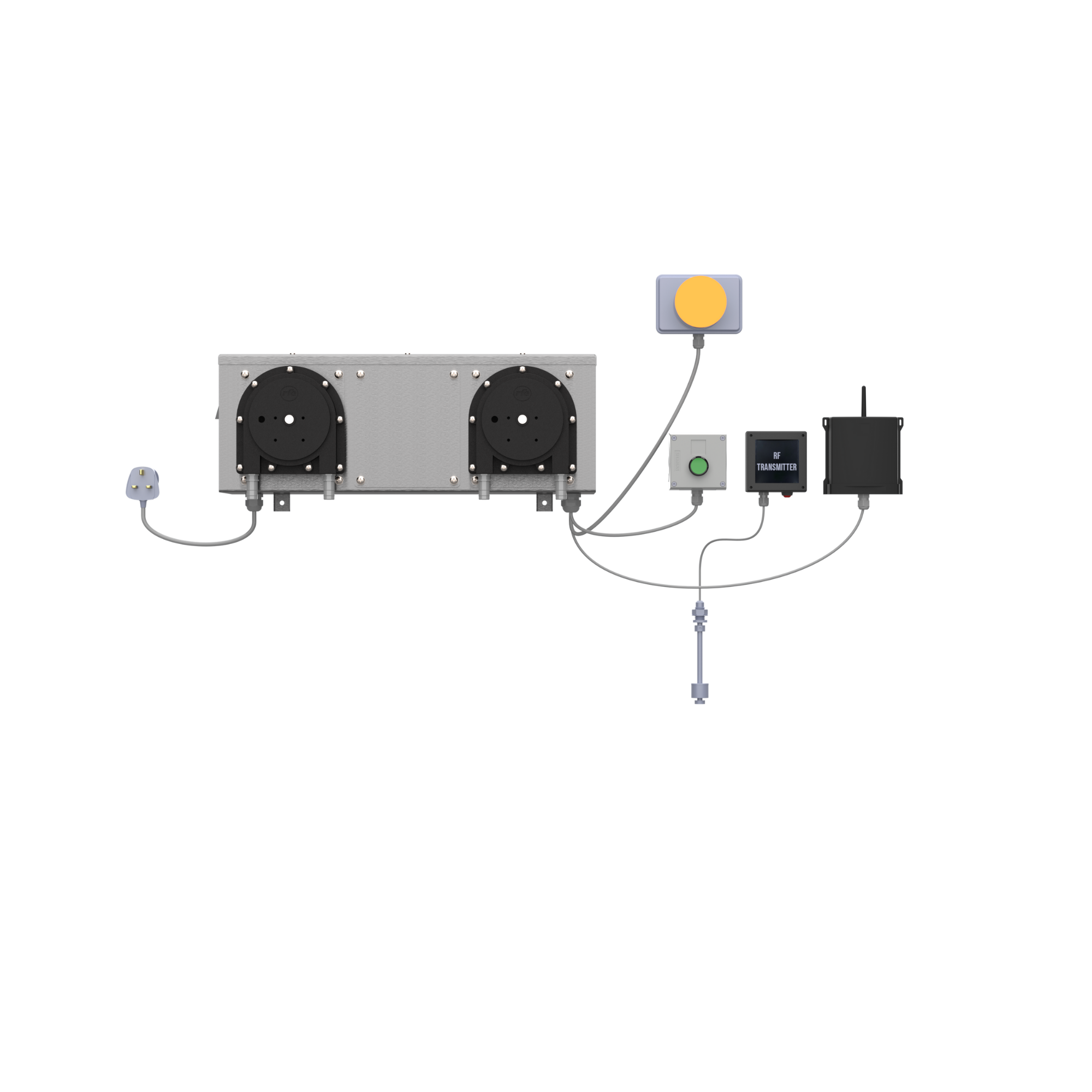

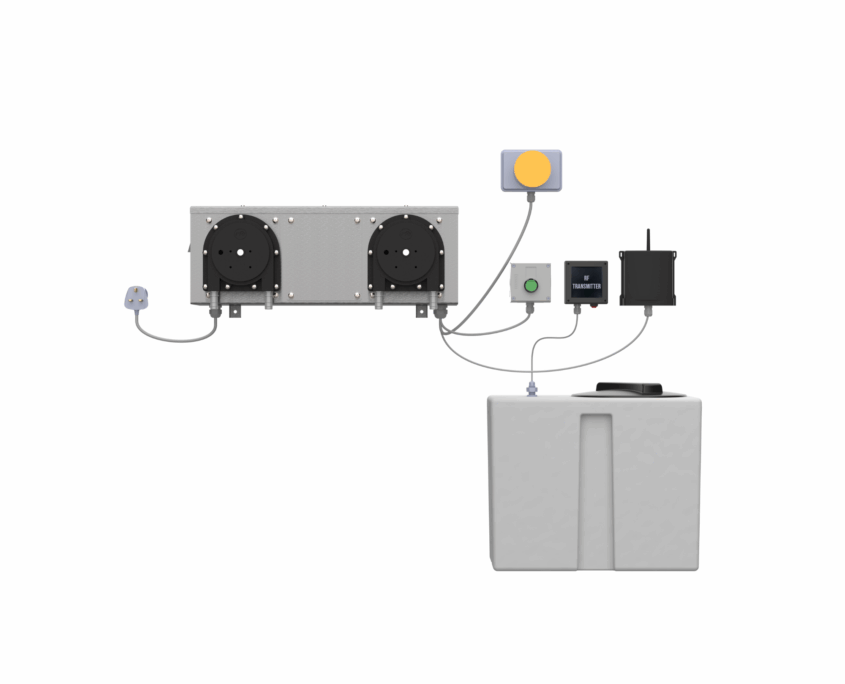

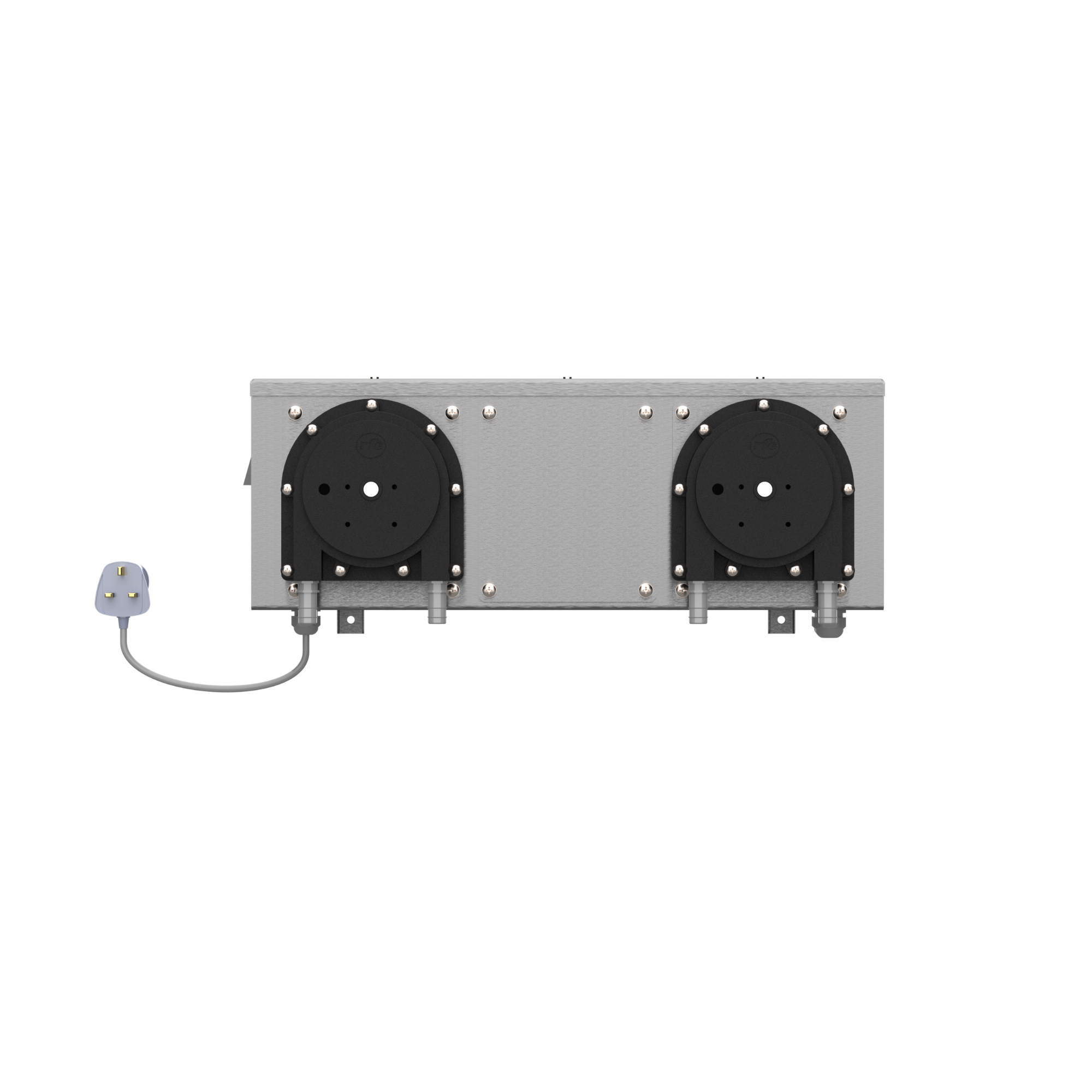

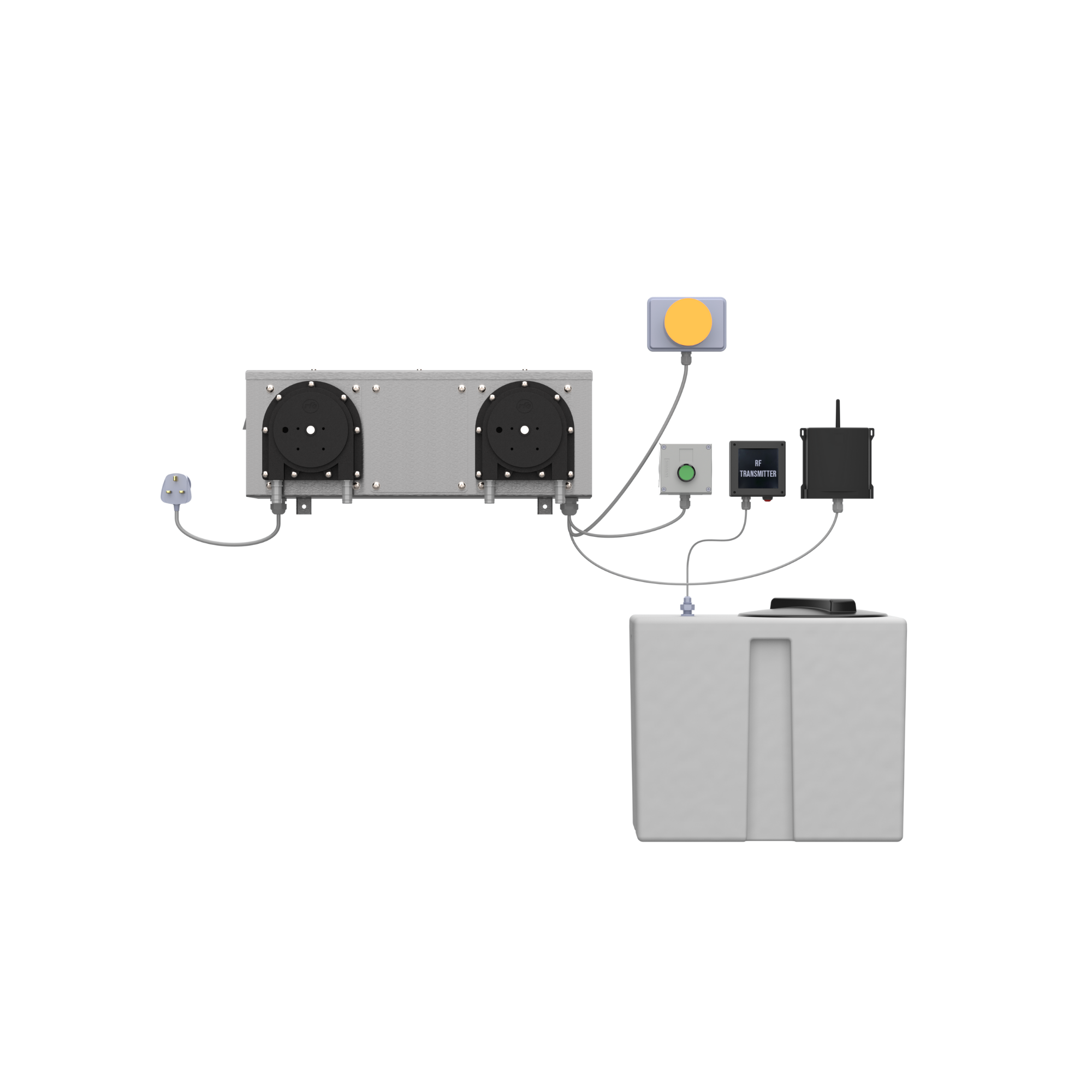

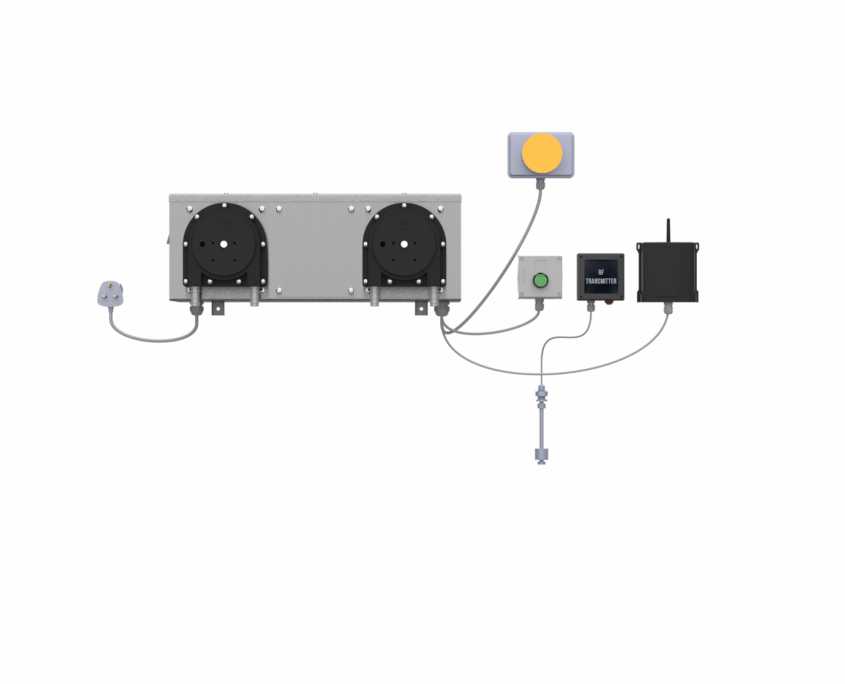

Ambic Filling System is an electronic Extra High-Volume pumping system used on rotary parlour to fill or refill the 40 / 125Lt tank.
Ordering information: Ambic Filling System
| Part No | Description |
|---|---|
| ARD/100-2-1-40 | 2 Pump Filing System for one chemical (Filling 1 x 40lt Chemical Tank) |
| ARD/100-2-2-40 | 2 Pump Filing System for two different chemicals (Filling 2 x 40lt Chemical Tank) pre and post chemical |
| ARD/100-2-1-125 | 2 Pump Filing System for one chemical (Filling 1 x 125lt Chemical Tank) |
| ARD/100-2-2-125 | 2 Pump Filing System for two different chemicals (Filling 2 x 125lt Chemical Tank) pre and post chemical |
Ordering information: Ambic Filling System Spare Parts
| Part No | Description |
|---|---|
| EHV/M-100-24 | Extra High-Volume 24V DC Motor |
| AHP/102-ARD | High-Volume Peristaltic Pump Spinner Assembly with Spring Loaded Rollers |

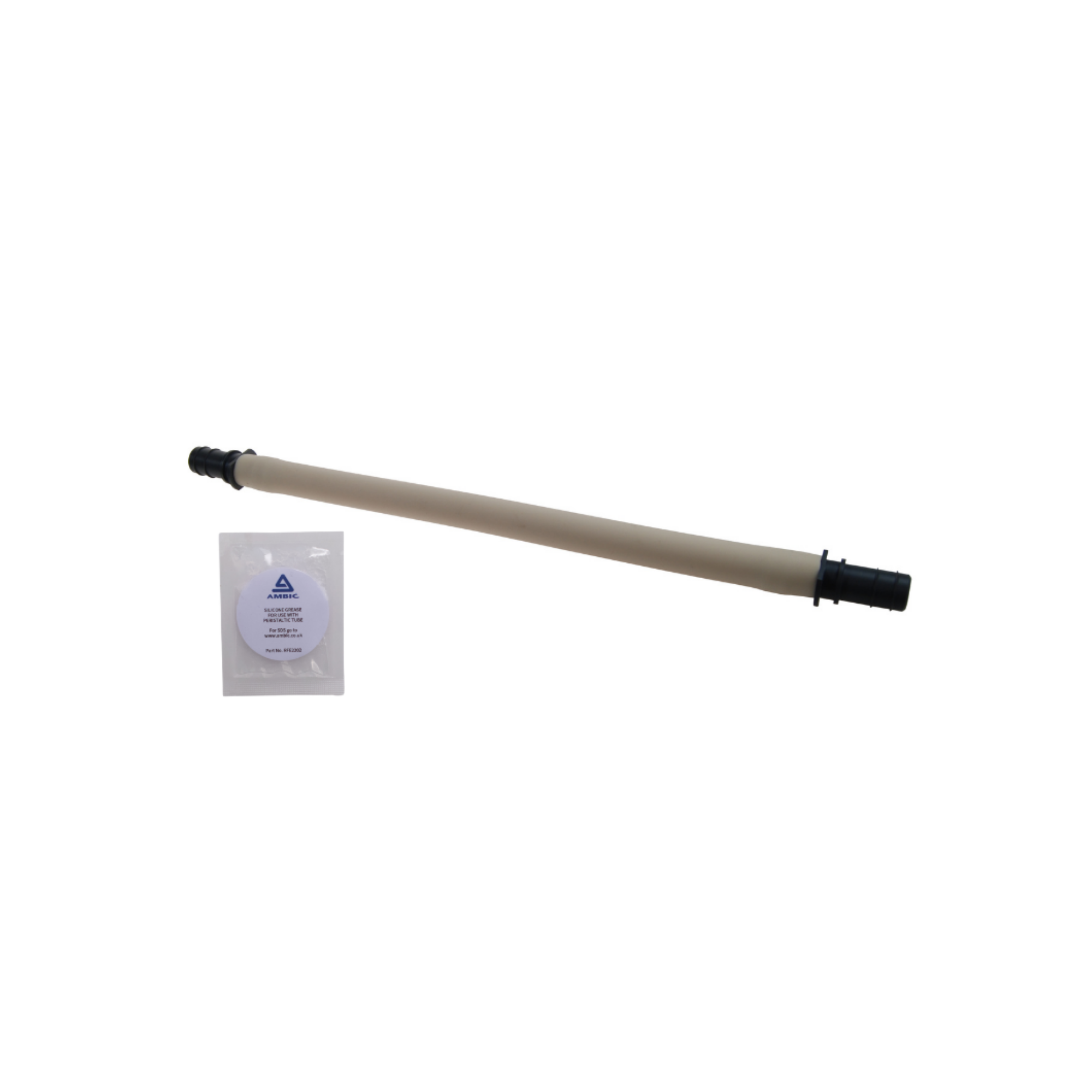

| AHP/100-SA09 AHP/100-SA12 | High-Volume Pump 9.6mm Bore Tube with Spigots High-Volume Pump 12.7mm Bore Tube with Spigots |
| AHP/103 | High-Volume Peristaltic Pump Block & Cover with screws. |
| ALP/115 | Peristaltic pump tube lubricant |

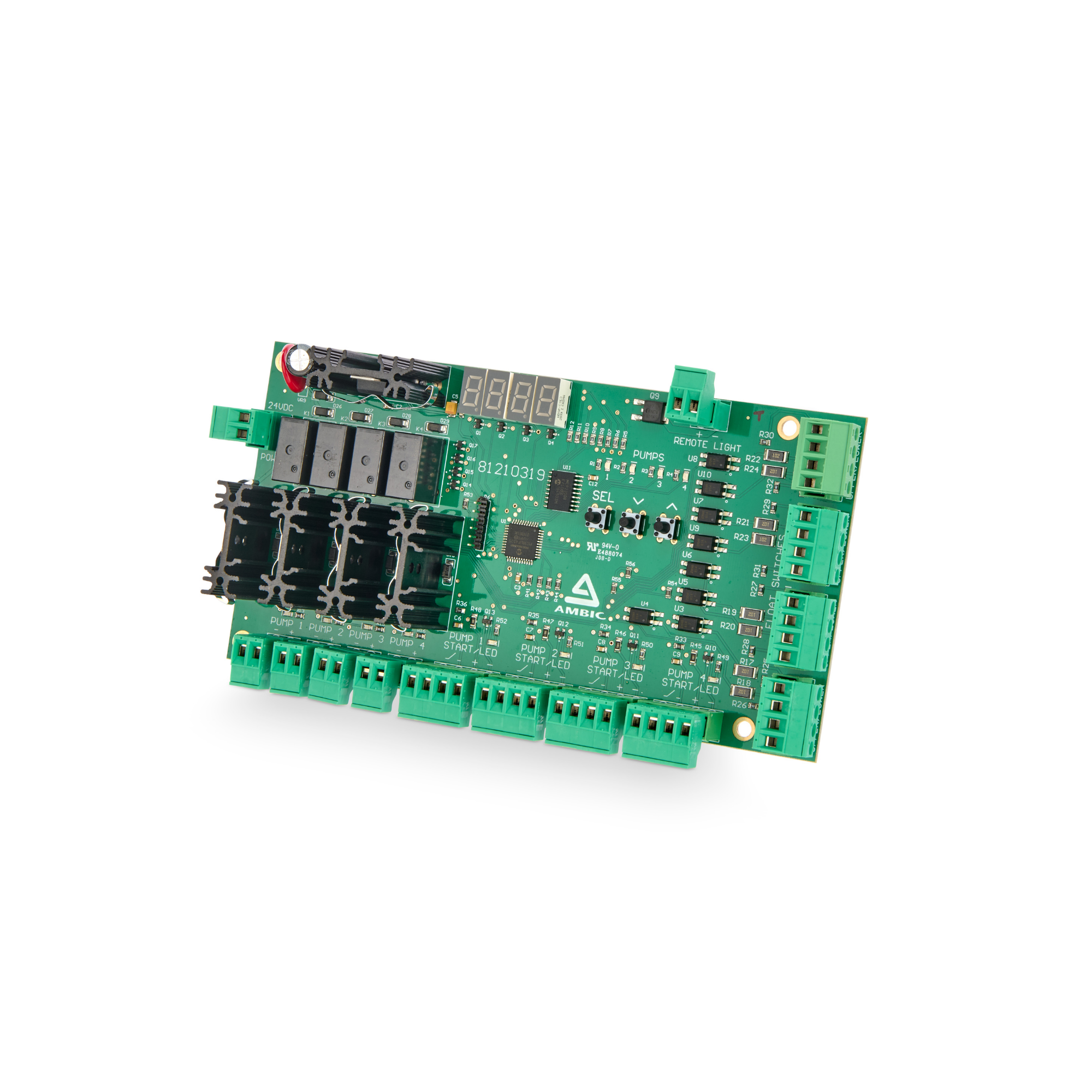

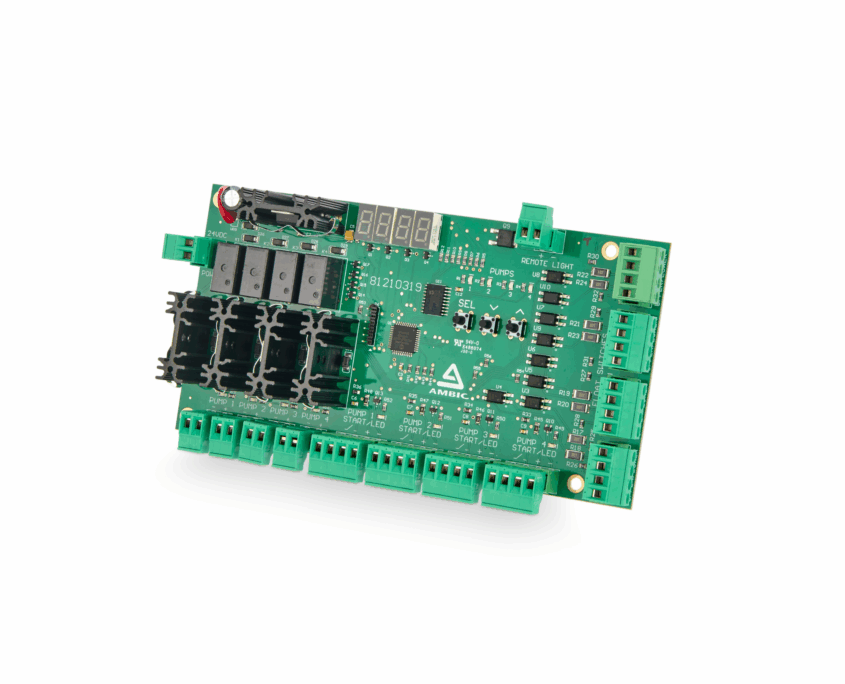

| ARD/010 | Filling system PCB |

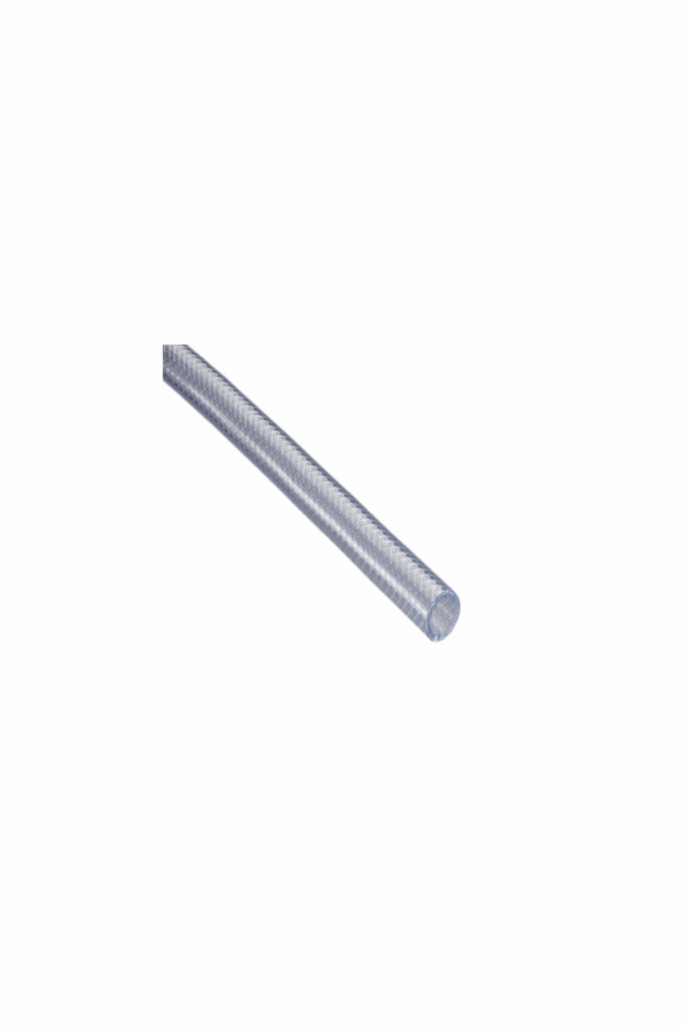

| ARD/428-3/4-SS | 30m 3/4” springflex |
