Ambic Low and Medium-Volume are, 230V, 50Hz, AC motor operated pumps. These can be supplied with various speeds and/or with different size bore diameter to allow for different delivery rates.

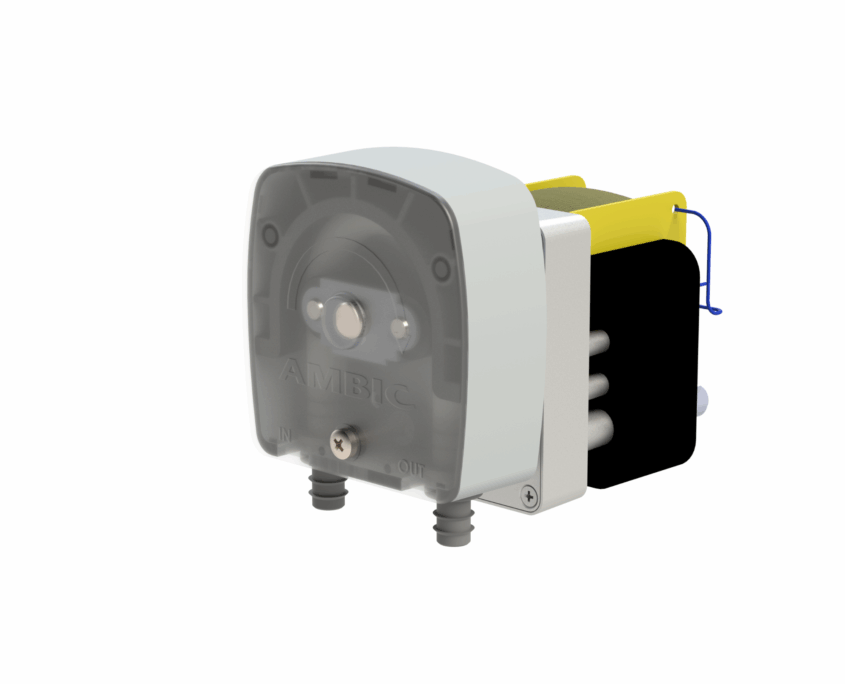

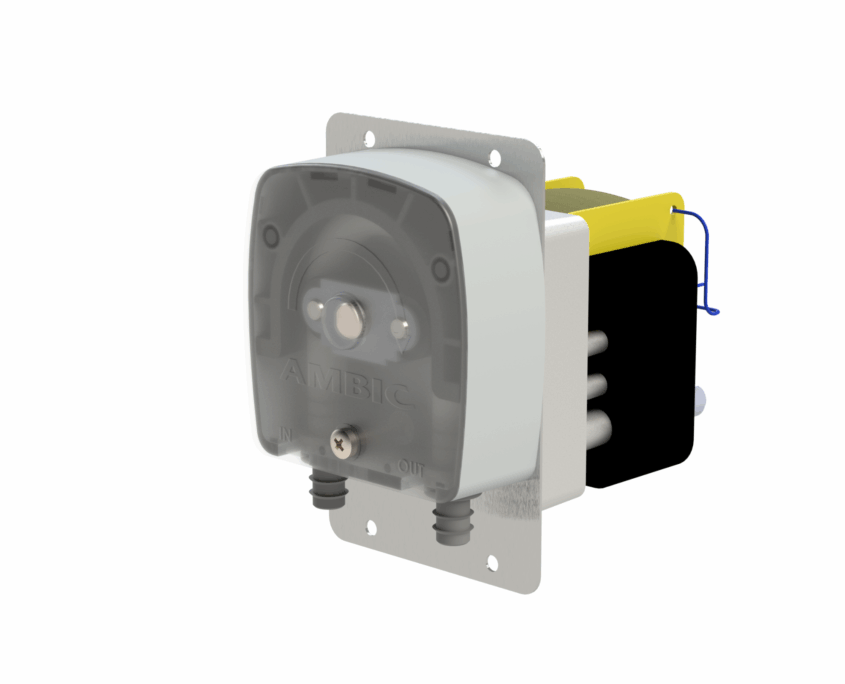

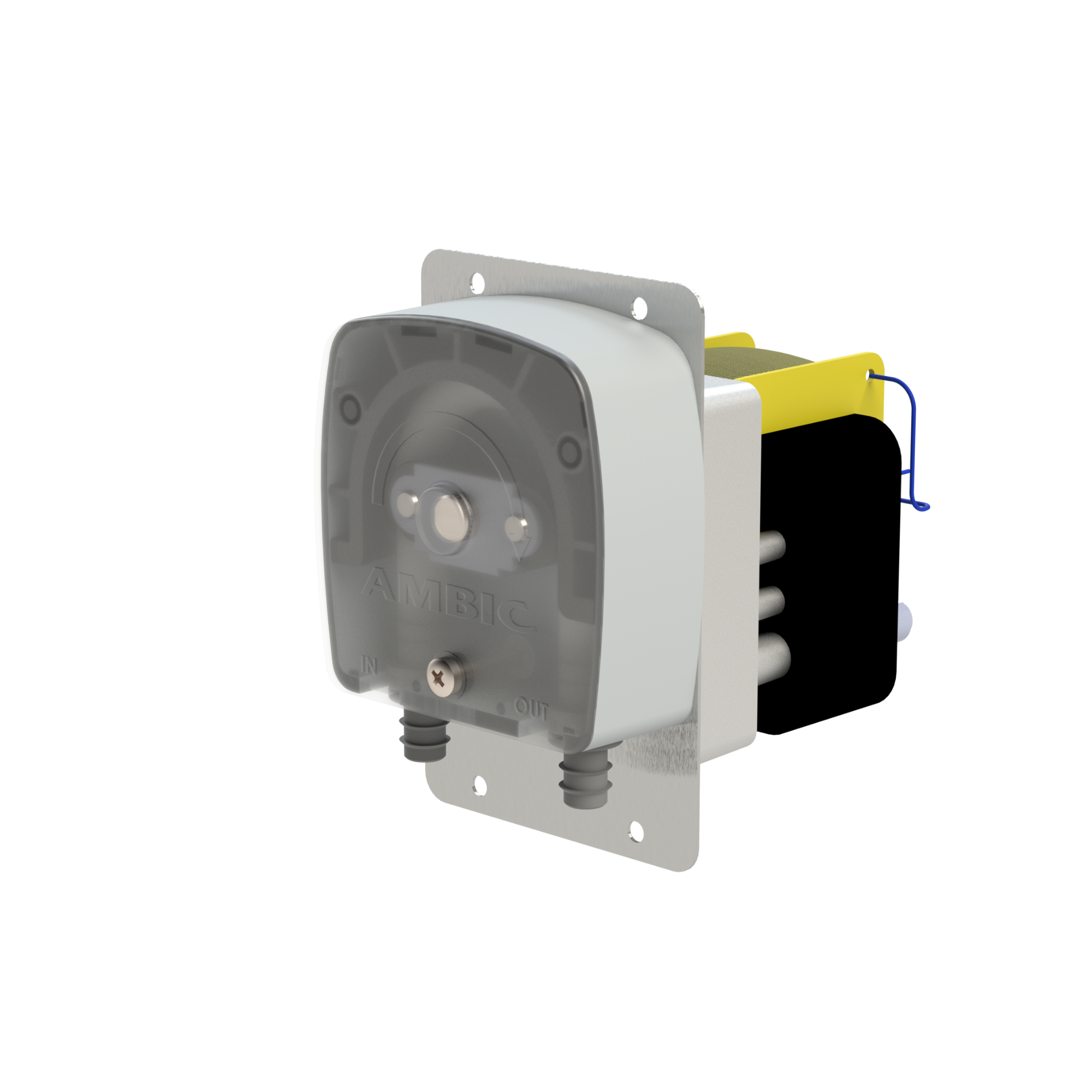

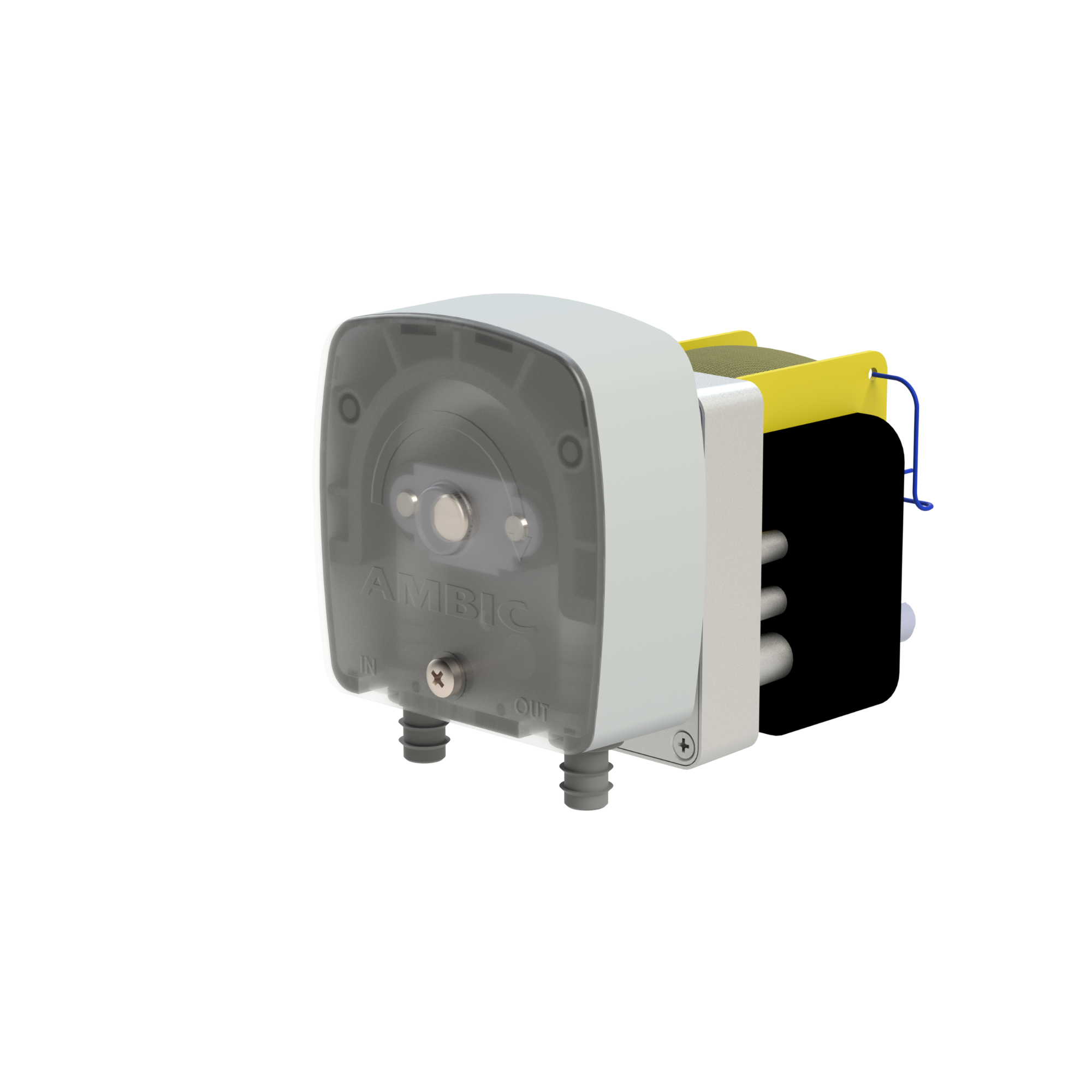

These pumps can be supplied fitted with or without mounting plate or fitted on a plastic enclosure.
These pumps are designed with unique spring-loaded roller assemblies to reduce tube wear, prolong tube life and improve delivery performance.
Ordering information: Low and Medium-Volume AC Pumps
The Numbers below form the basic part number; please add one of the codes from the Blue, Green or Orange Column(s) depending on the ml/min. required.
| Model Number | Fixed or Variable output | RPM | Running current at room temp. (A) | Spigot size | Tube Size | |||||||
| 3.2 Bore | 4.6 Bore | 6.3 Bore | ||||||||||
| 12V | 24V | 230V | Code | ml/min | Code | ml/min | Code | ml/min | ||||
| LM/AC-230-SA | Fixed | 100 | - | - | 0.8 | 01 | 100 | 02 | 225 | 03 | 350 | |
Option to order with or without horizontal mounting plate is available upon request. Indicative figures based on tests carried out using water at room temperature.
