Ambic has launched a new range of automated dosing and dilution systems which is based on combining its extensive, well-proven range of RFE low-volume and high-volume peristaltic pumps with a new microprocessor control system which it has developed to control the operation of up to three peristaltic pumps of differing capacities in order to dispense and dose precise quantities of fluids for cleaning or sanitisation purposes. Typical applications include the dispensing of detergent, bleach, acid and/or alkaline for sanitisation purposes as well as the mixing and dilution of udder health chemicals for teat sanitisation applications.
The device has an LCD display and keypad on the front of the unit for ease of set up and programming of the pump run time and pump speed; the LCD display also shows relevant information when the unit is running and can be used to access performance data.
Key features of the system include the following:
- A combination of low-volume and high-volume (40RPM – 160RPM) pumps with a range of tubes sizes (ranging from 1.8mm to 6.3mm for low volume pumps & 9.6mm to 12.7mm bore for high volume pumps) as well as numerous different polymers (Santoprene, silicone, Viton) to suit a range of applications
- A combination of time and speed control functions enables the amount of product dispensed to be determined both by reference to pump speed and run time for accurate dosing
- Pump Run Time adjustable from 1 to 5.00 minutes
- Pump Speed Control adjustable from 50% to 100%
- Pump Start Delay adjustable from 0 to 30 seconds
- A range of flow rates from a minimum of 75 ml/min to a maximum of 550 ml/min for low volume pumps and a minimum of 700ml/min to a maximum of 3500ml (3.5L)/ min for high volume pumps
- Option of setting a time delay before initiating the pump
- The unit has a ‘Pump Inhibit’ or ‘Lock-out’ safety feature which can prevent consecutive dispensing of chemicals where excessive dosing could be a hazard. This is adjustable from 0 to 30 minutes
- Data logging facility to record and display performance data, including cumulative run time and cumulative chemical consumption
- Pump calibration is made via the LCD display and keypad
- Password protected keypad for security
- Includes low level alarm feature to warn when chemical levels are running low – appropriate lance assemblies can be purchased separately
- Available with UK, European or other international plugs
- EMC and CE approved

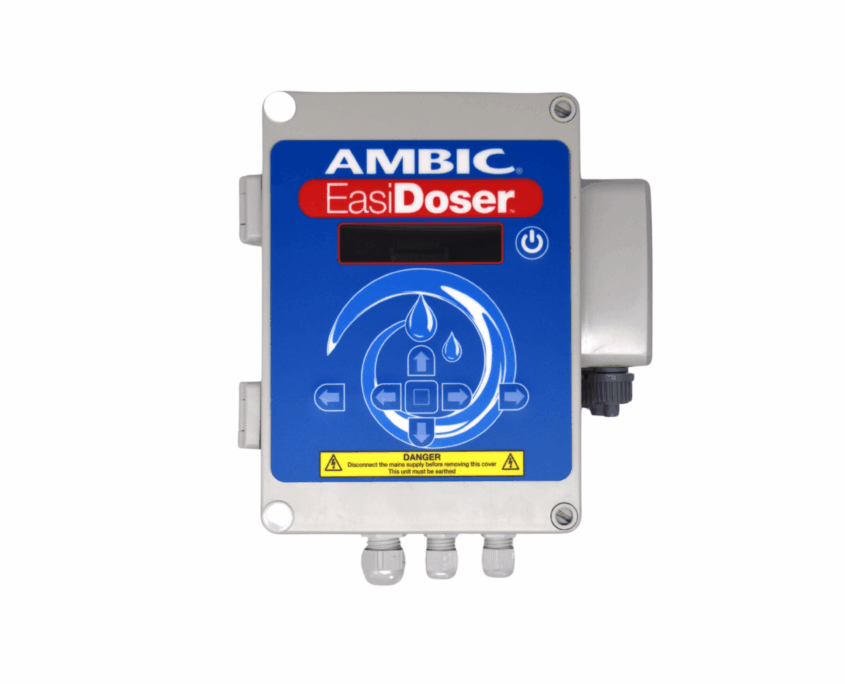

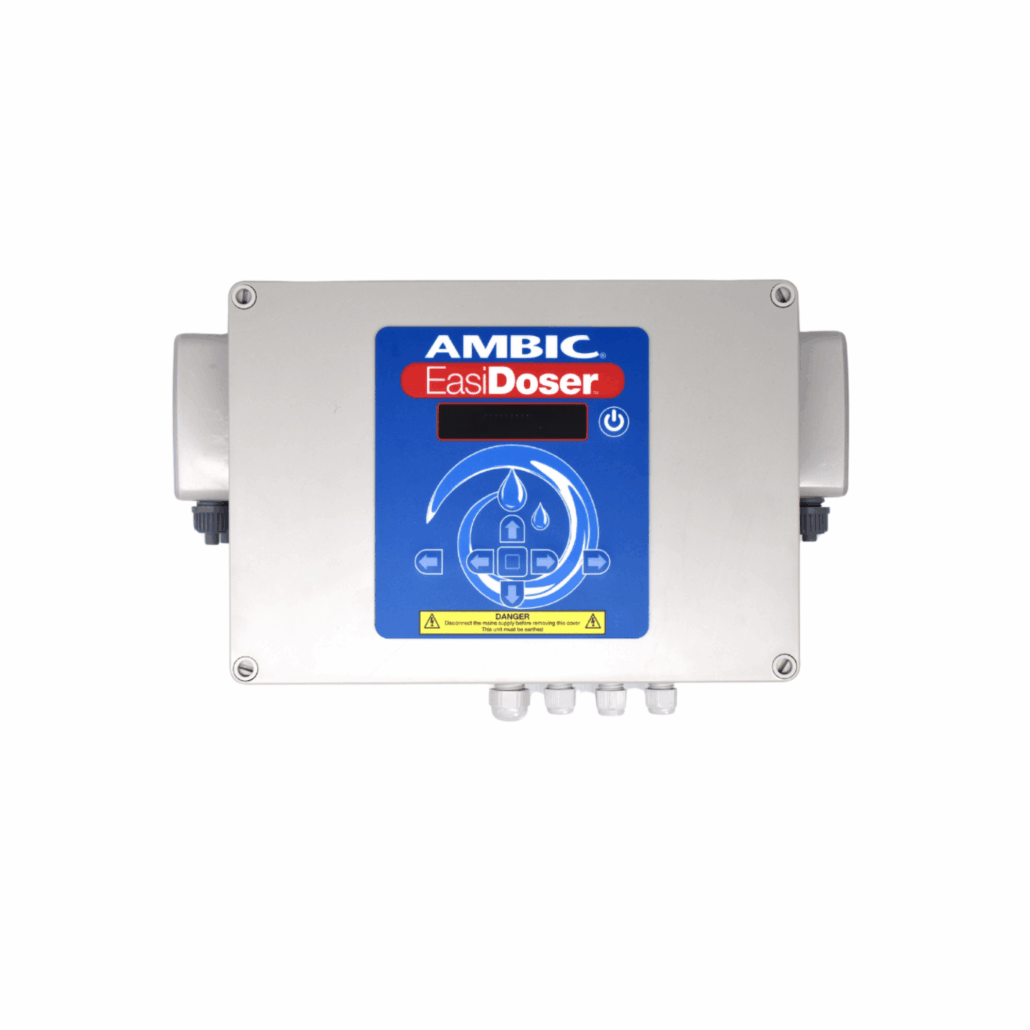

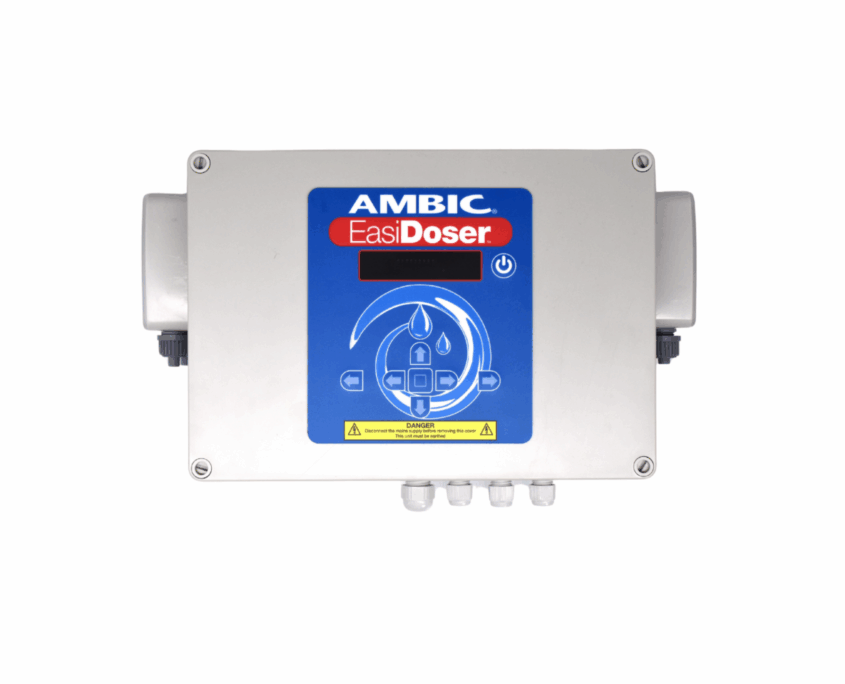

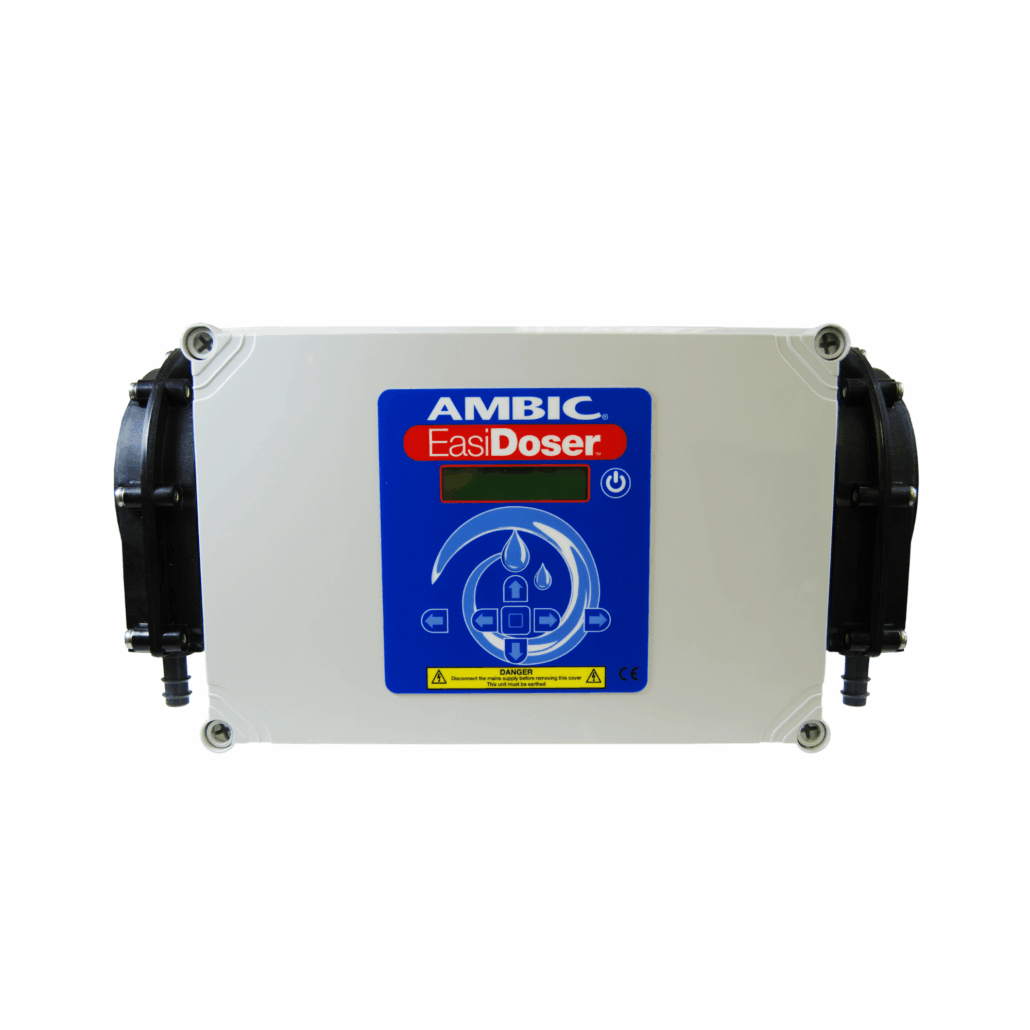

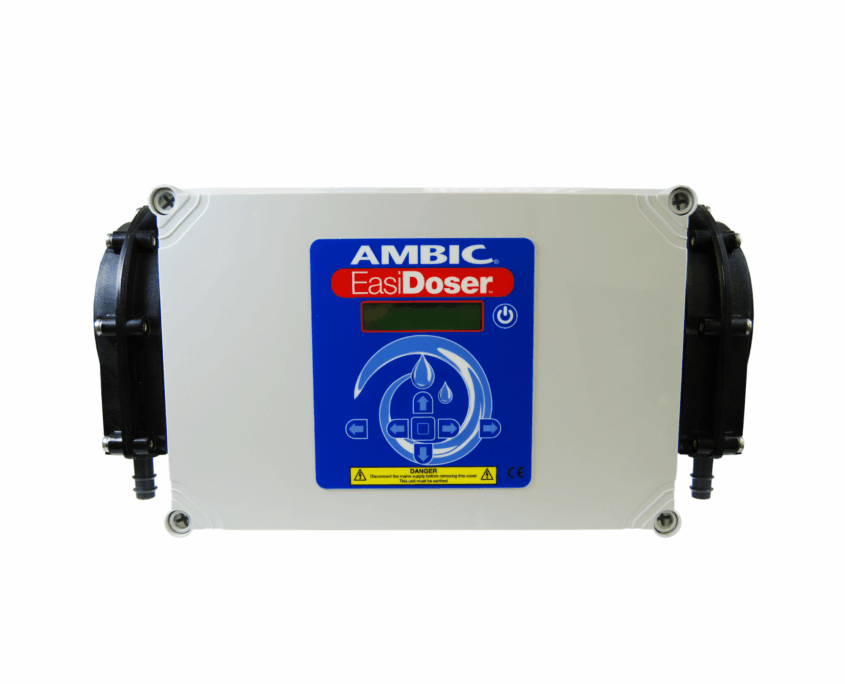

EasiDoser™
Part No. | Description |
---|---|
ADE/003-1LV | EasiDoser System with 1 Low Volume Pump |
ADE/003-2LV | EasiDoser System with 2 Low Volume Pumps |
ADE/003-3LV | EasiDoser System with 3 Low Volume Pumps |
ADE/003-2HS | EasiDoser System with 2 High Speed Pumps |
ADE/003-2LV-1IND | EasiDoser System with 2 Low Volume Pumps and 1 Industrial Pump |
ADE/003-2IND | EasiDoser System with 2 Industrial Pumps |
