Mix‘n’Demand™ System (Low-Level Alarm System)

The Ambic Mix’n’Demand™ chemical dosing system mixes two-part teat sanitisation chemicals during milking so that a fresh mixture is always on hand when needed, without expensive chemicals being wasted at the end of milking.

This system is particularly intended for the growing demand to mix small batches of Chlorine Dioxide (which must be used within 24 hours, so must be mixed daily) and for other chemicals which may have a short shelf life once mixed. The system is suitable for use with spraying, dipping or foaming chemicals.

The Ambic Mix’n’Demand™ system is fitted with two peristaltic pumps with Speed control potentiometers to mix two chemicals. Dual Float switches control the output into the mixed chemical container. An optional vacuum switch automates switching the unit on and off in tandem with the milking system. A Time Delay feature is also available; it controls a delay of up to 15 minutes from when the lower float switch activates, to the start of pumping of the mixed chemical into the container.

If for any reason the mixed chemical activates the top float switch, both pumps will stop running immediately

Ordering information: Mix’n’Demand™ System

Part NoDescription

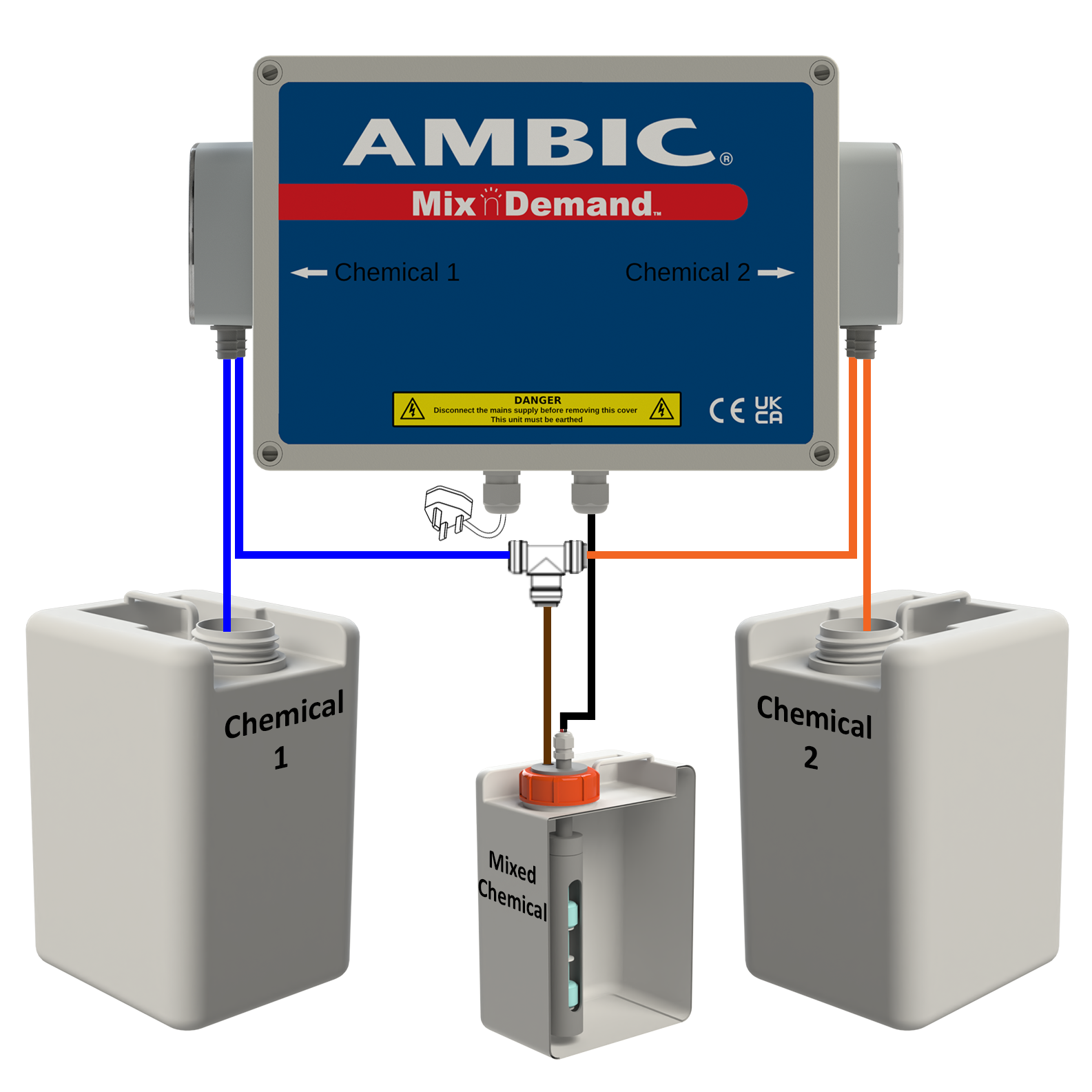

MDE/003-2LVMix’n’Demand system with 2 Low-Volume Pumps, Float switch assembly and the
mixed chemical container.

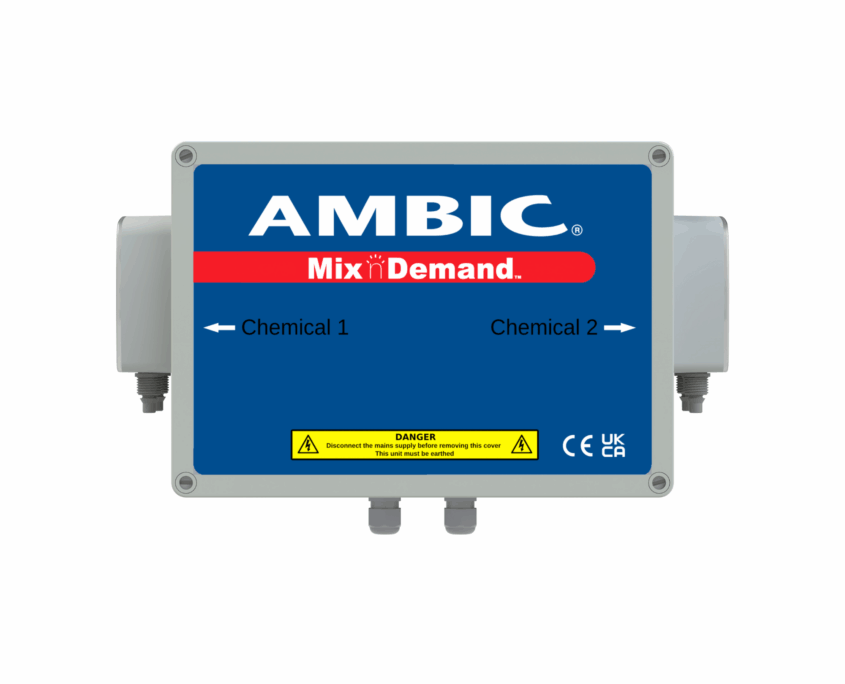

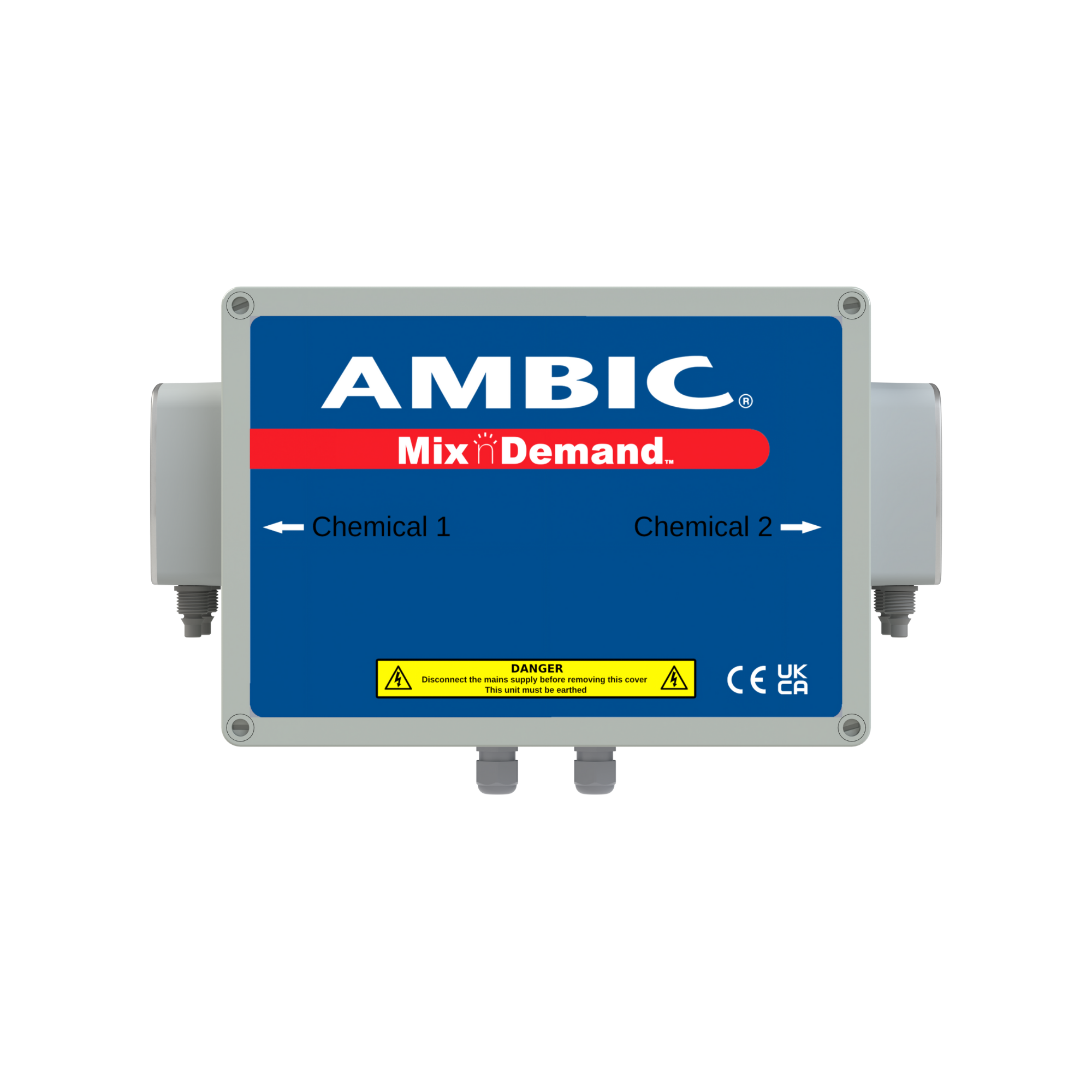

MDE/001-2LVMix’n’Demand with 2 Low-Volume Pumps – power unit

Ordering information: Mix’n’Demand™ System Spare Parts

Part NoDescription
ALP/101-SA625-ATSPeristaltic Santoprene tube with ATS connectors
ALP/115Peristaltic pump tube lubricant

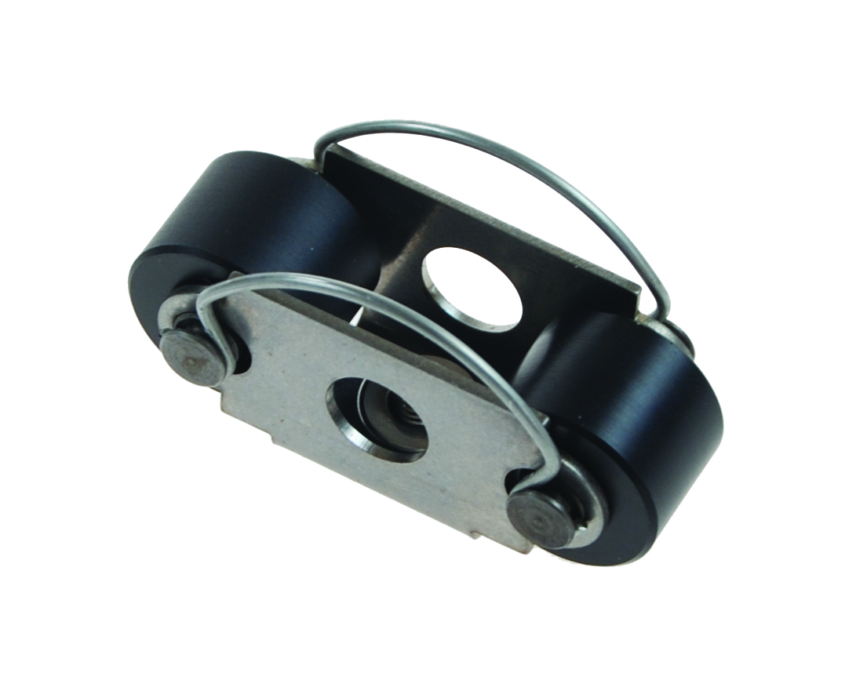

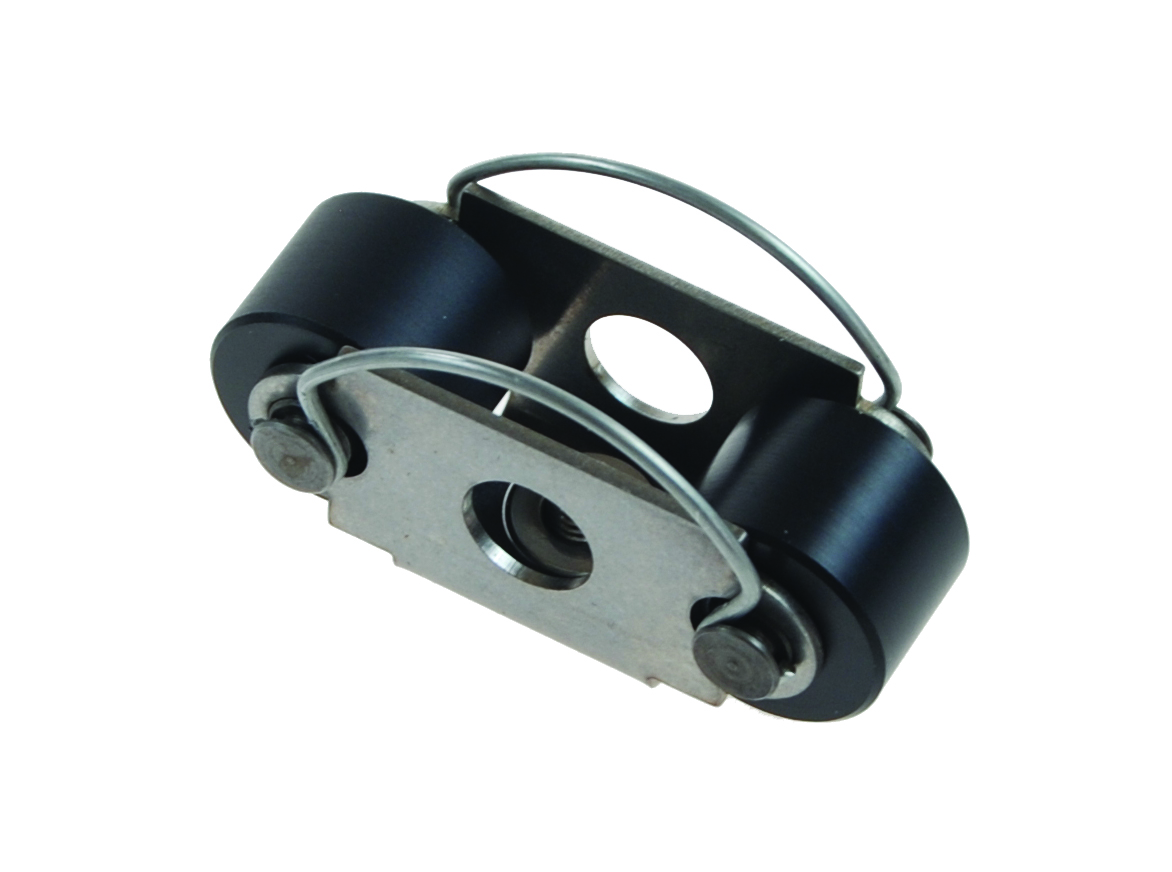

ALP/102Spring loaded spinner assembly

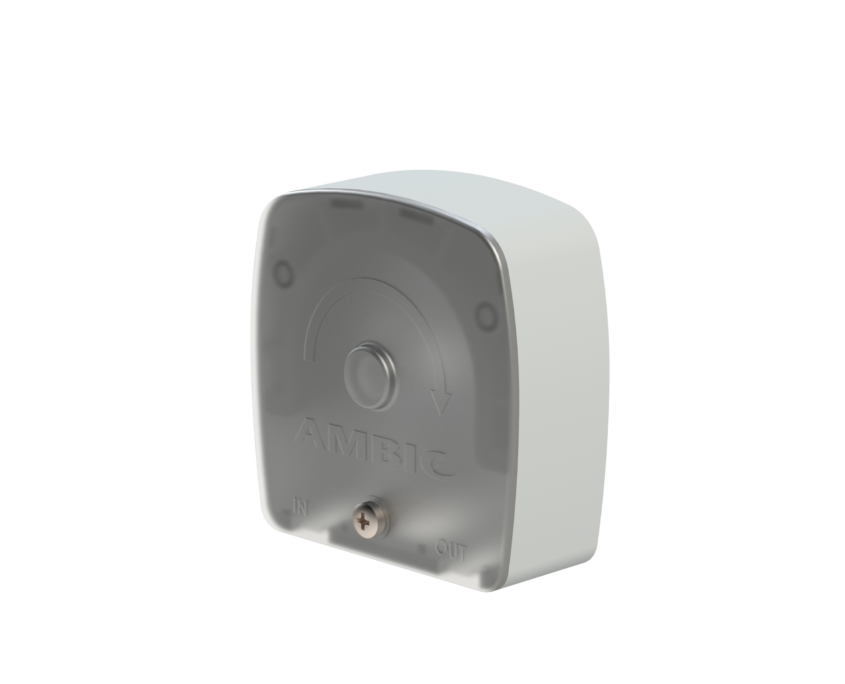

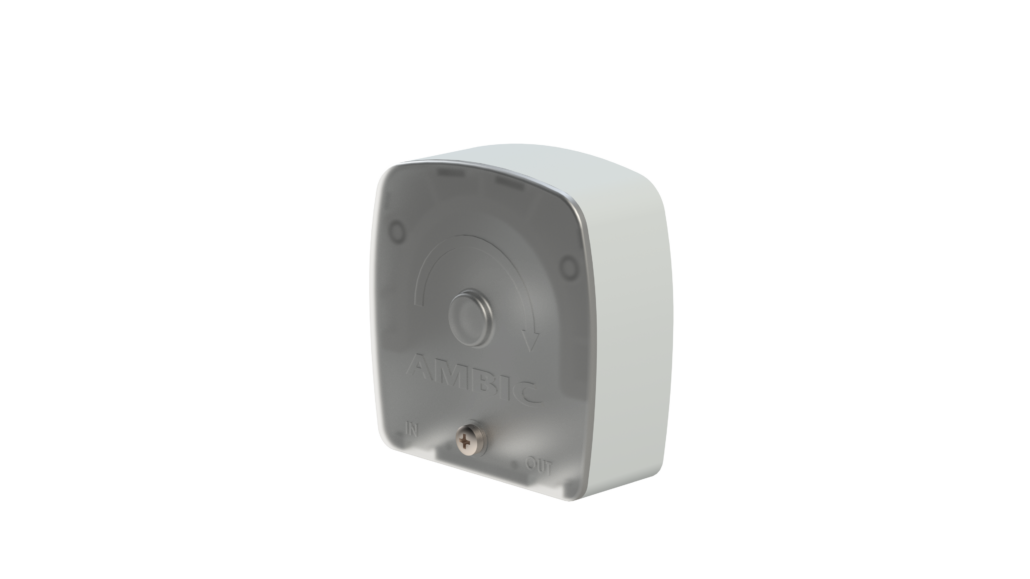

ALP/203-CLow and Medium-Volume Pump Block and Cover with Screws
ALP/100-24-18824V DC Motor and Gear Assembly

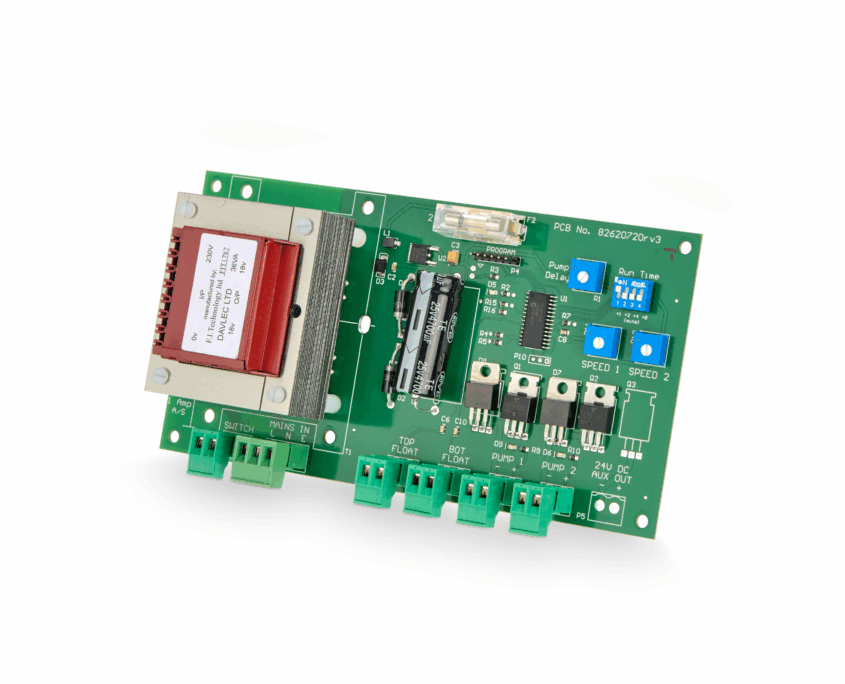

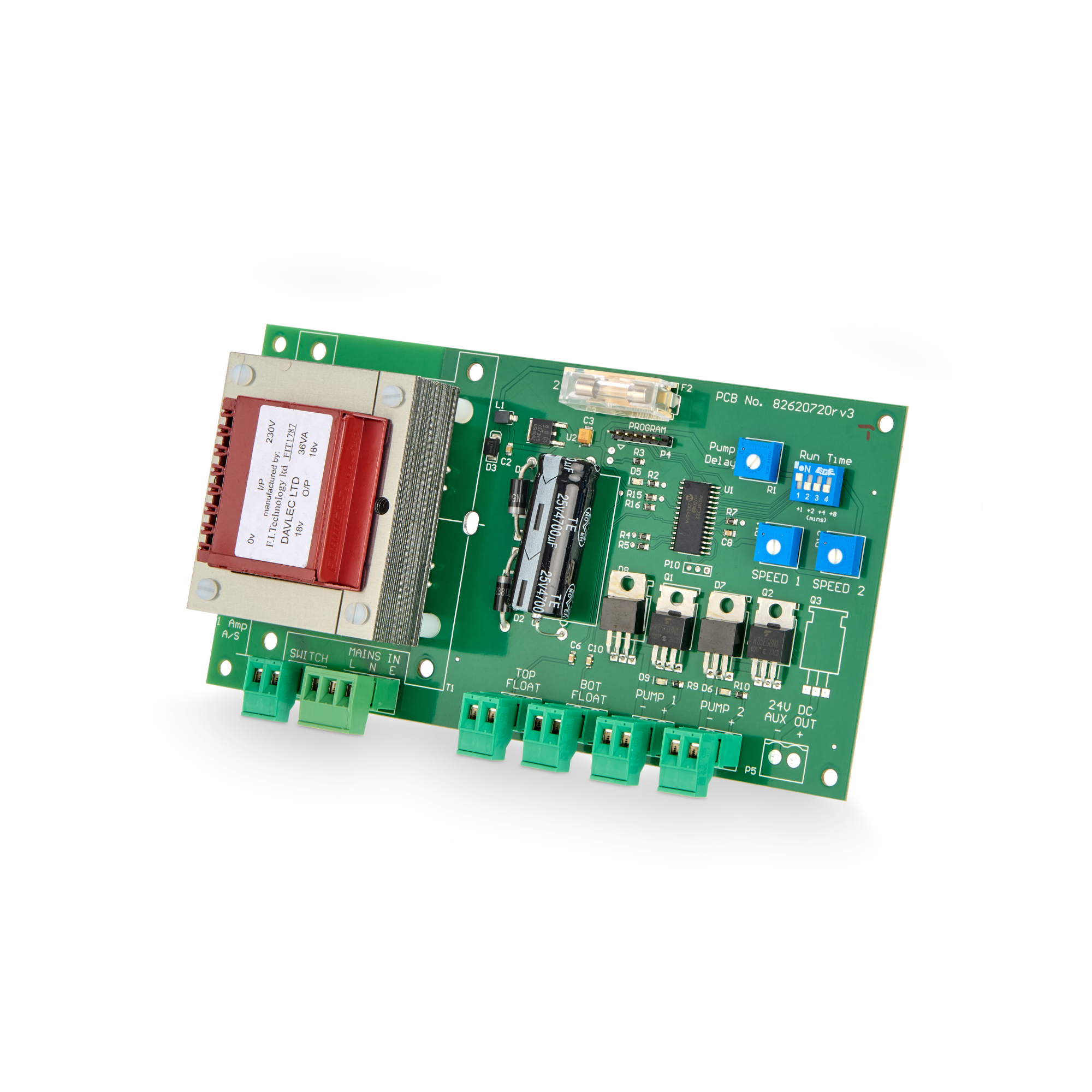

MDE/004 Mix’n’Demand PCB
ATS/412-NRNon Return Valve Intake Filter
MDE/006Float Switch Assembly incl. cap
