Ambic SimpliDose™ is an electronic pumping system used for various application to dose a Pre-Determined amount of chemical. The pump can be set to manually or automatically trigger to does a set amount.
SimpliDose™ is a rugged, reliable and easy to install Low-Volume Dosing Pump, ideal for injecting precise doses of a wide range of liquids. The peristaltic pump technology used includes spring-actuated rollers that will extend the life of the tubes, reducing the need for replacement and thus saving money.
Once the unit has been set to dose a measured amount, it will dose the same amount on a manual push button trigger or an automatic machine signal (18V to 230V, AC or DC) 400ml per minute.
Ordering information: Ambic SimpliDose™
| Part No | Description |
|---|---|

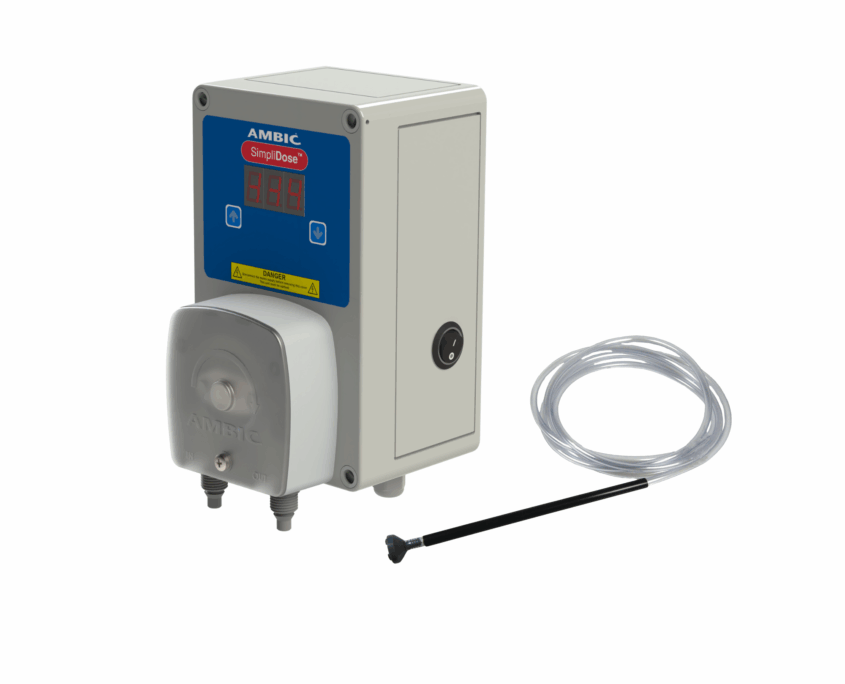

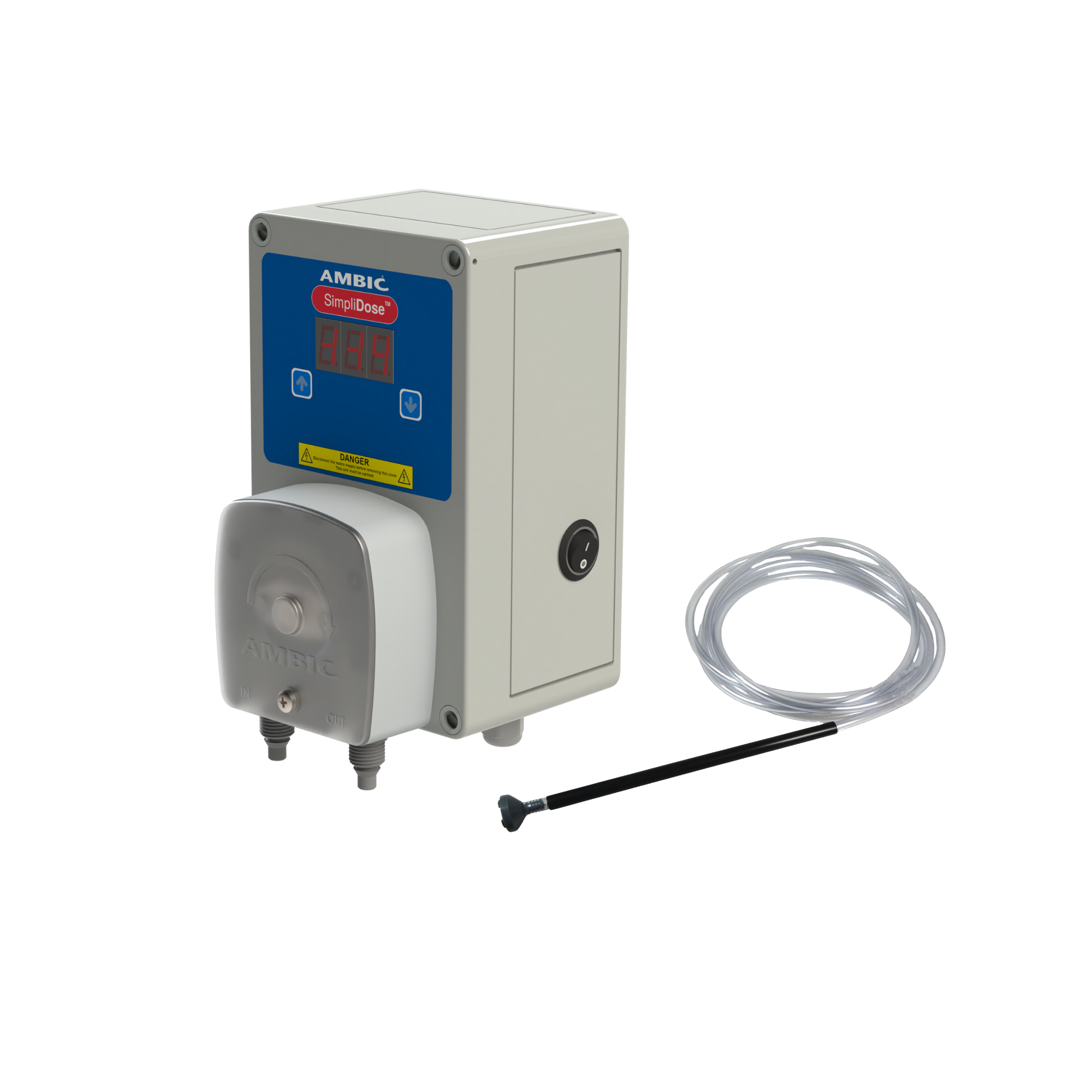

| SDL/001-230 | SimpliDose™ Low-Volume Dosing Pump System 230V |

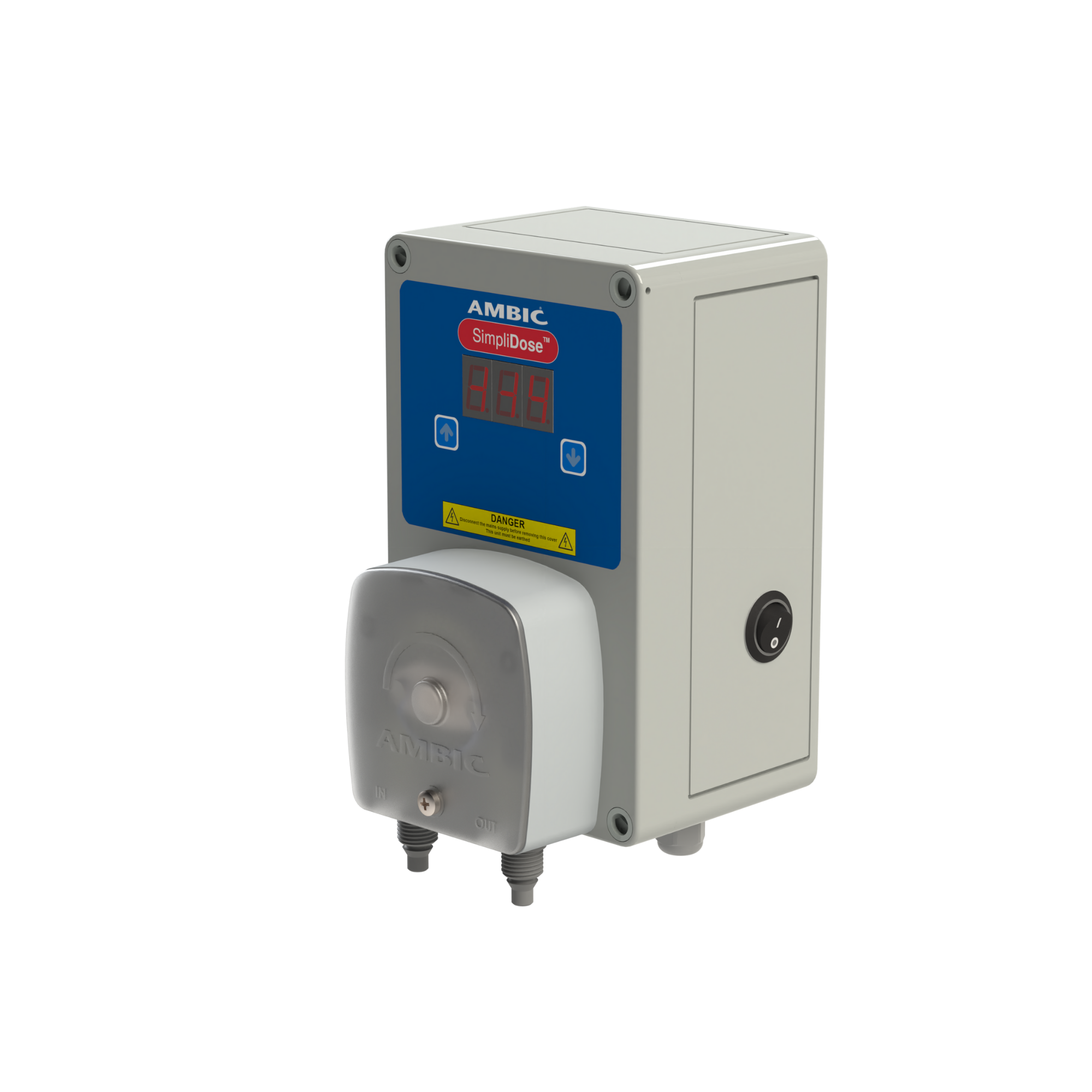

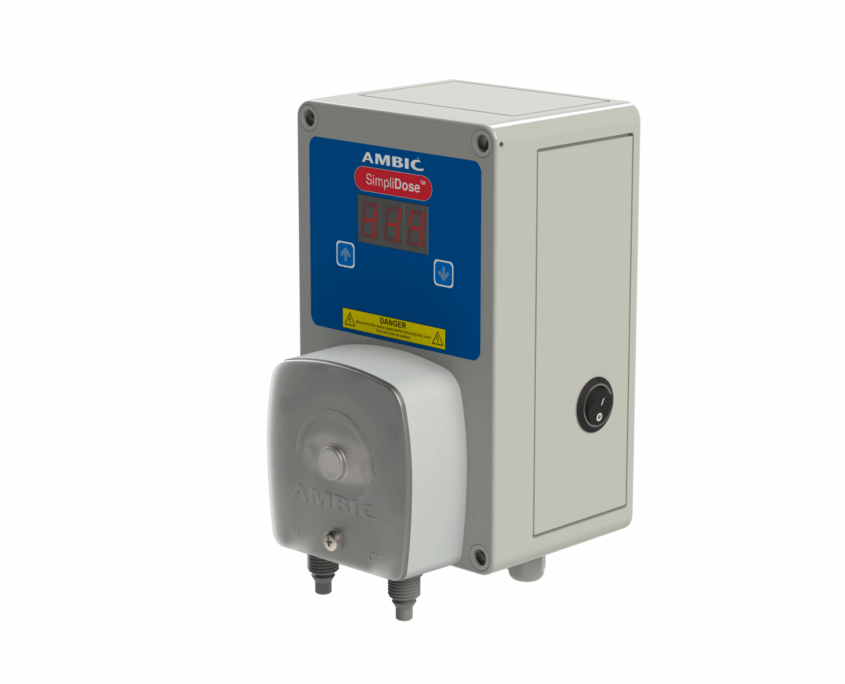

| SDL/003-230 | SimpliDose™ Low-Volume Dosing Pump Power Unit 230V |
Ordering information: Ambic SimpliDose™ Spare Parts
| Part No | Description |
|---|---|
| ALP/101-SA625-ATS | Peristaltic Santoprene tube with ATS connectors |
| ALP/115 | Peristaltic pump tube lubricant |
| ELU5529 | Spring loaded spinner assembly |
| ALP/203-C | Low and Medium-Volume Pump Block and Cover with Screws |

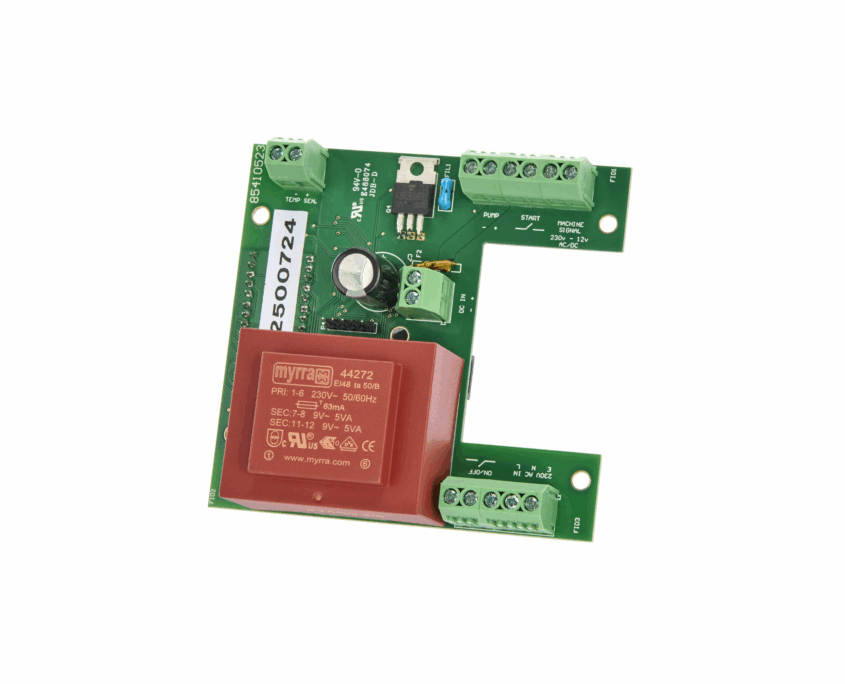

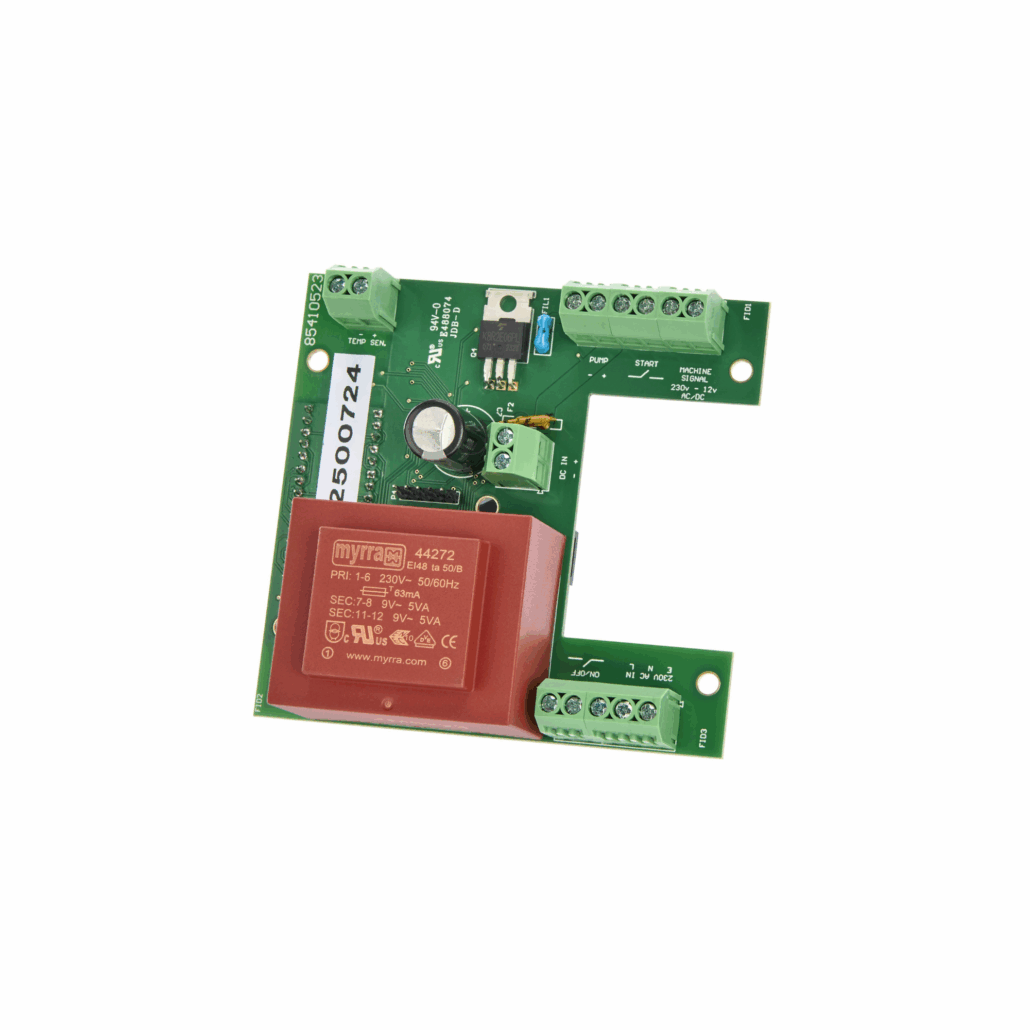

| SDL/004 | SimpliDose™ PCB |
| ATS/412-NR | Non Return Valve Intake Filter Not suitable for Jetstream™ or PeraSpray™ |
