The QMI™ Quarter Milk Isolator is designed to isolate the milk of one quarter from the other three during milking. It is a useful device for managing milk quality, in cases where elevated somatic cell counts (SCC) are observed in one quarter. Isolating the milk from a high SCC quarter by using the Quarter Milk Isolator, can significantly lower the SCC in the bulk milk tank which can help yield higher milk premiums.
- Large 7.5L capacity
- Large (10cm) 4˝ opening for ease of emptying and cleaning
- Heavy duty stainless steel bail holds lid in place
- 90 degree elbow allows easy connection of liner/inflation and facilitates good liner/inflation presentation for clean milk out.
- Large bore, flexible silicone rubber hoses make connection and manipulation easy
QMI™ (Quarter Milk Isolator)
Part No | Description |
---|---|
AQM/001 | QMI™ Quarter Milk Isolator Complete (1/2” Steel Elbow) |
AQM/001-14 | QMI™ Quarter Milk Isolator Complete (14mm Steel Elbow |

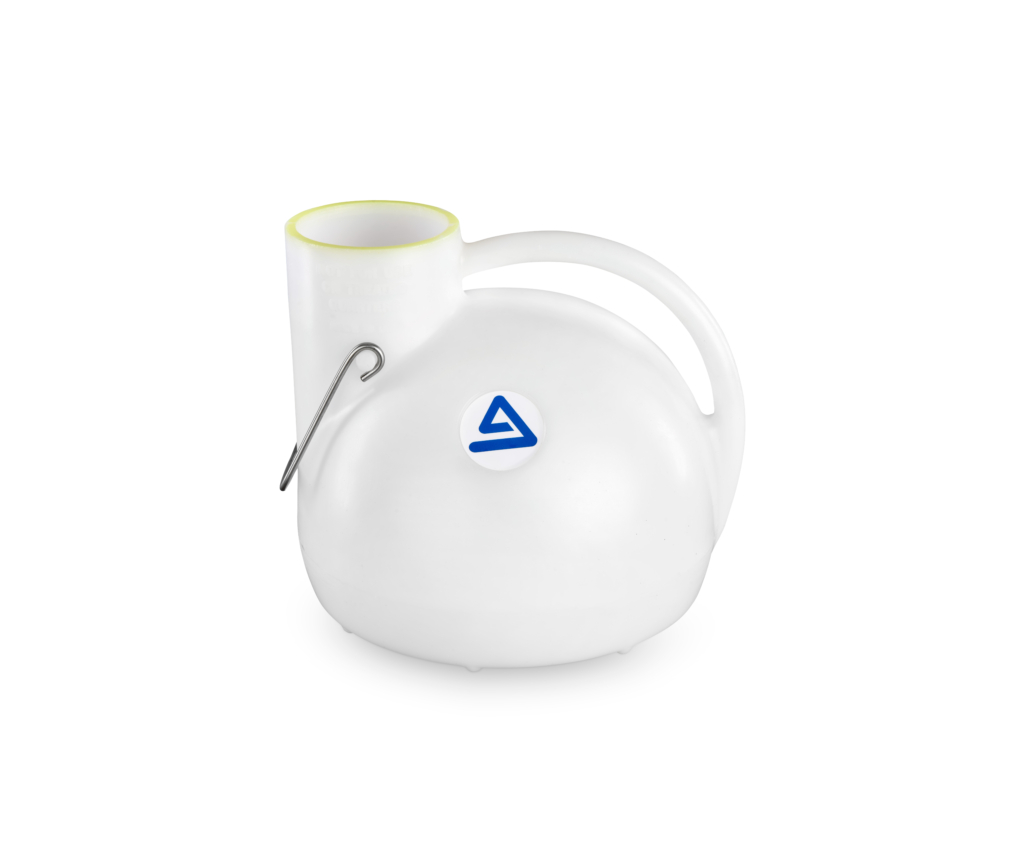

AQM/002 | QMI™ Quarter Milk Isolator Bowl |

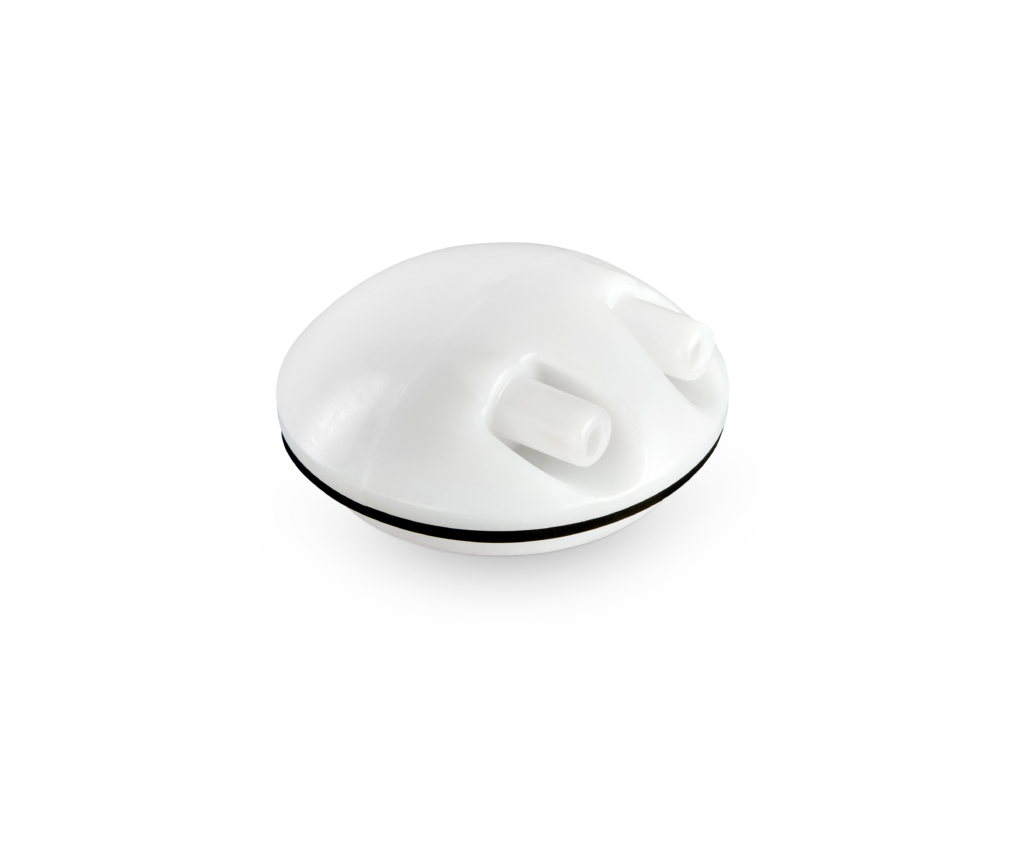

AQM/003 | QMI™ Quarter Milk Isolator Lid |
AQM/004 | QMI™ Quarter Milk Isolator Gasket |
AQM/005 | QMI™ Quarter Milk Isolator Silicone Rubber Hose 24˝ (61cm) |
AQM/006 | QMI™ Quarter Milk Isolator Silicone Rubber Hose 26˝ (66cm) |
AQM/007 | QMI™ Quarter Milk Isolator Silicone Rubber Hose Per Foot – 12” (Please state the length required in feet when ordering) |
AQM/008 | QMI™ Quarter Milk Isolator Steel Elbow – 12mm |
AQM/008-14 | QMI™ Quarter Milk Isolator Steel Elbow – 14mm |
AQM/009 | QMI™ Quarter Milk Isolator Steel Bail |
