Ambic High-Volume Dispensing systems are available in Single, Twin or Triple pump assemblies. High-Volume Peristaltic Pumps, or a combination of High and Low-Volume Peristaltic Pumps in 12 or 24V DC, or 230V AC.
Single Dispensing Pumps (AC Motors) have a safety timer feature.
The Twin and Triple Units (AC Motors) are fitted with an electronic PCB board that controls the pumps via an 11V or 24V DC signal. This prevents two pumps from running simultaneously and avoids the accidental mixing of different chemicals such as alkaline and acid. Pump controls with 11V and 24V DC voltage are widely used to activate the pump(s).
Ordering information: High-Volume 230V AC Pumps
The Numbers below form the basic part number; please add one of the codes from the Blue or Green Column(s) depending on the ml/min. required.
| Model Number | Fixed or Variable output | RPM | Running current at room temp. (A) | Spigot size | Tube Size | |||||
| 9.6 Bore | 12.7 Bore | |||||||||
| 12V | 24V | 230V | Code | ml/min | Code | ml/min | ||||
| HD/M-12-1- | Fixed | 188 | 3.6 | 1.65 | - | 1/2" | 01 | 4800 | 03 | 7100 |
| 3.6 | 1.65 | - | 5/8" | 02 | 04 | |||||
| HD/M-12-2- | 3.6 | 1.65 | - | 1/2" | 01 | 03 | ||||
| 3.6 | 1.65 | - | 5/8" | 02 | 04 | |||||
| HD/M-12-3- | 3.6 | 1.65 | - | 1/2" | 01 | 03 | ||||
| 3.6 | 1.65 | - | 5/8" | 02 | 04 | |||||

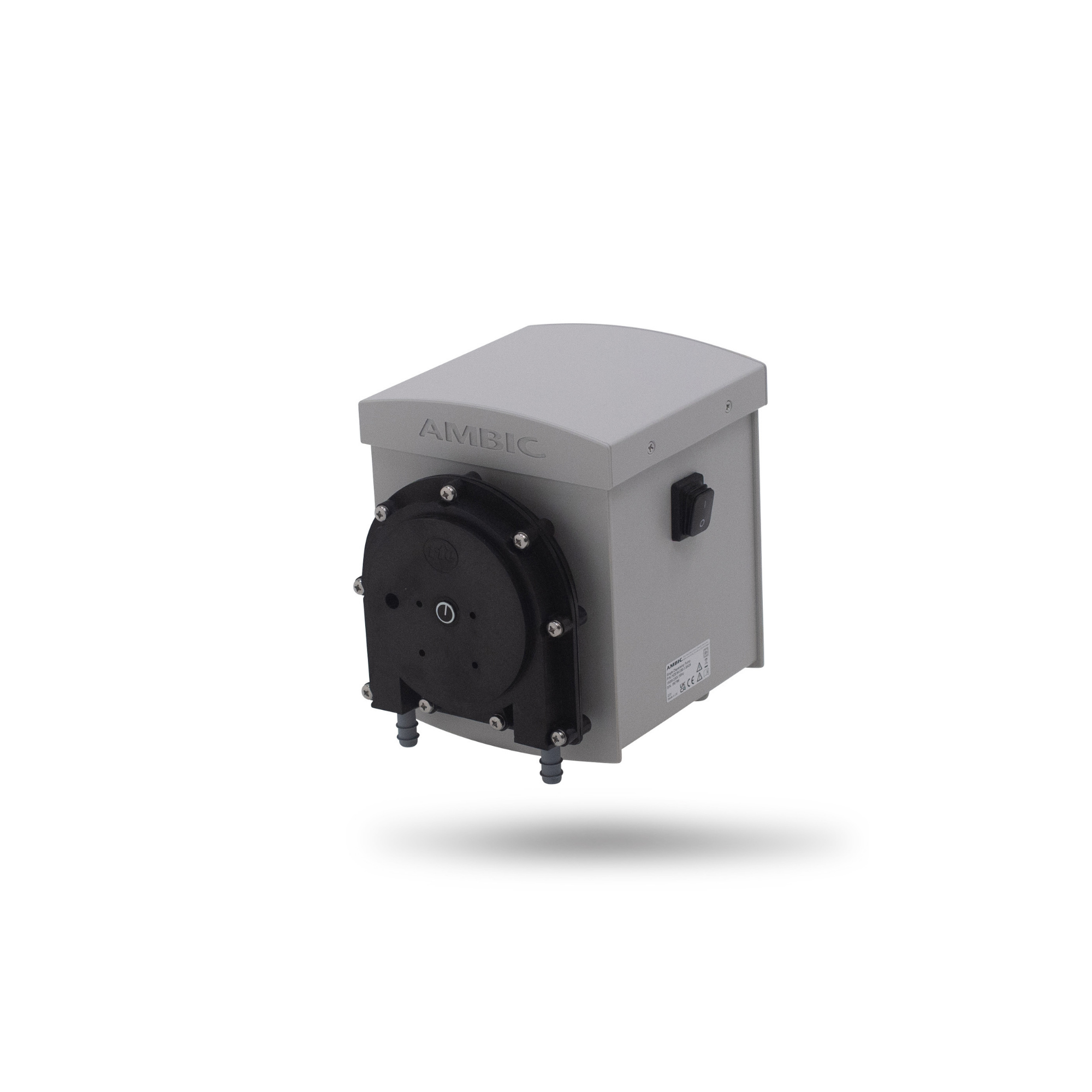

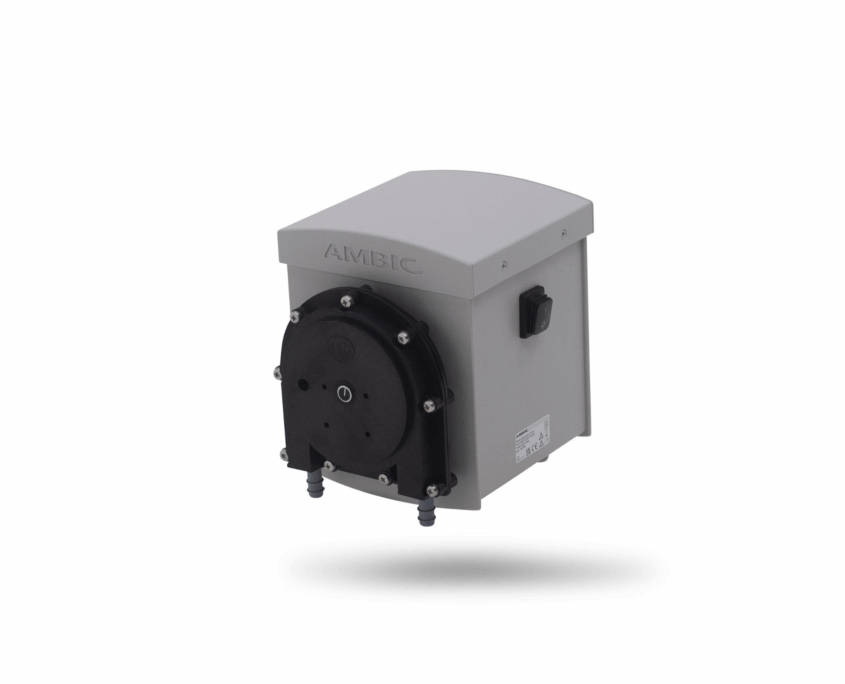

| HDE/M-230-1-SA | 80 | 2.5 | 1/2" | 01 | 1600 | 03 | 2500 | |||
| - | - | 2.5 | 5/8" | 02 | 04 | |||||
| HDE/M-230-2-SA | - | - | 2.5 | 1/2" | 01 | 03 | ||||
| - | - | 2.5 | 5/8" | 02 | 04 | |||||

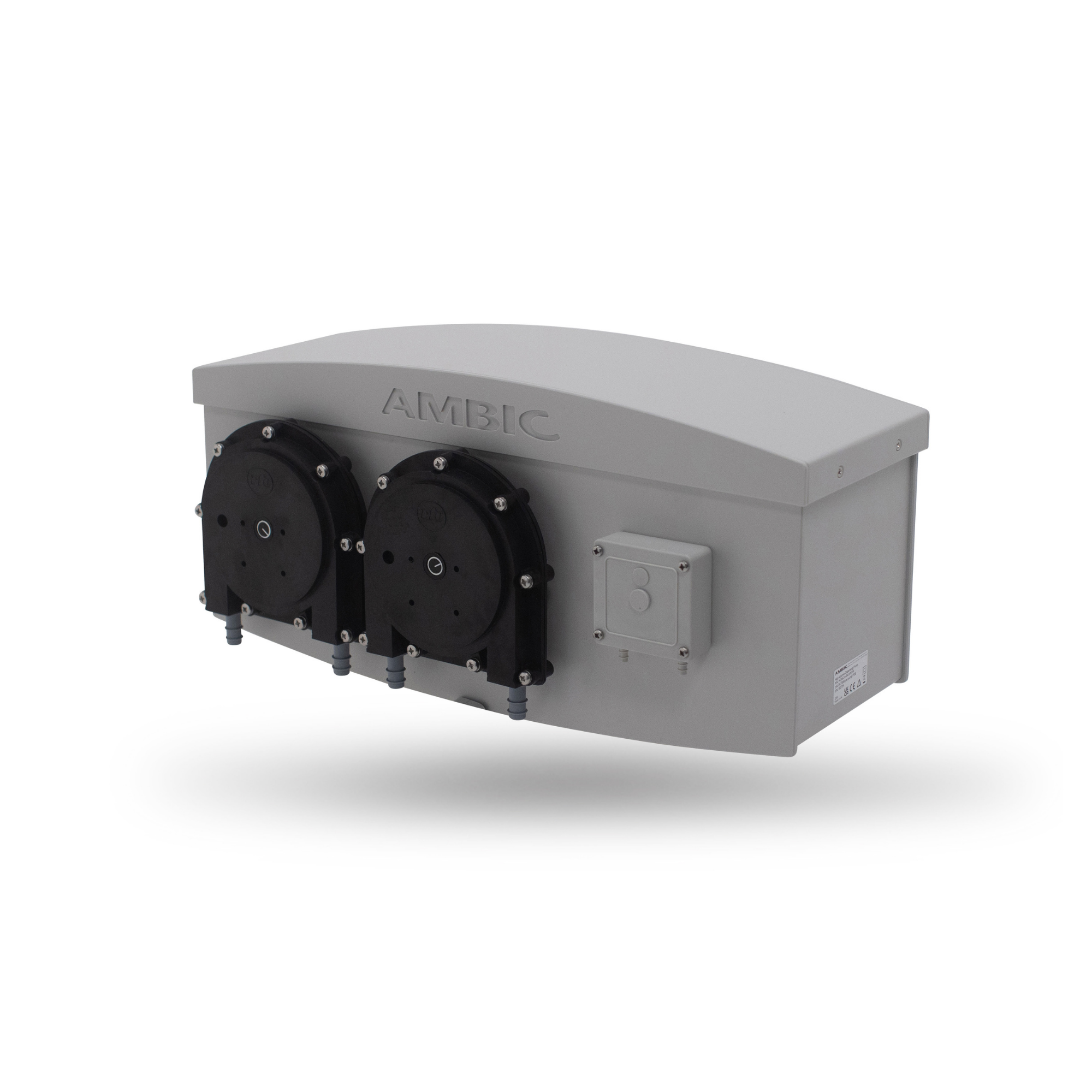

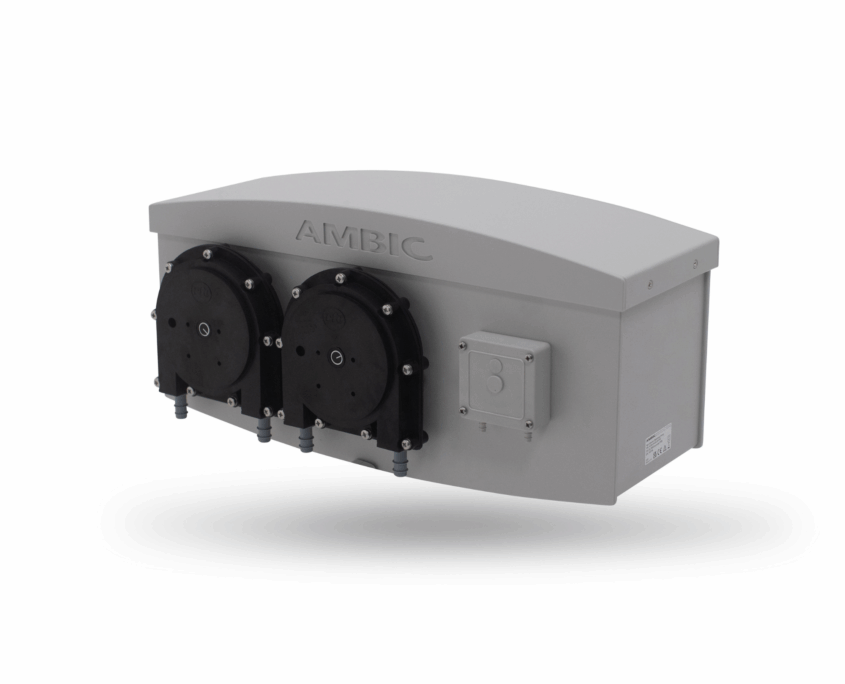

| HDE/M-230-3-SA | - | - | 2.5 | 1/2" | 01 | 03 | ||||
| - | - | 2.5 | 5/8" | 02 | 04 | |||||
SA = Santoprene
SI = Silicone
Option to order with or without mounting plate is available upon request. Indicative figures based on tests carried out using water at room temperature.
